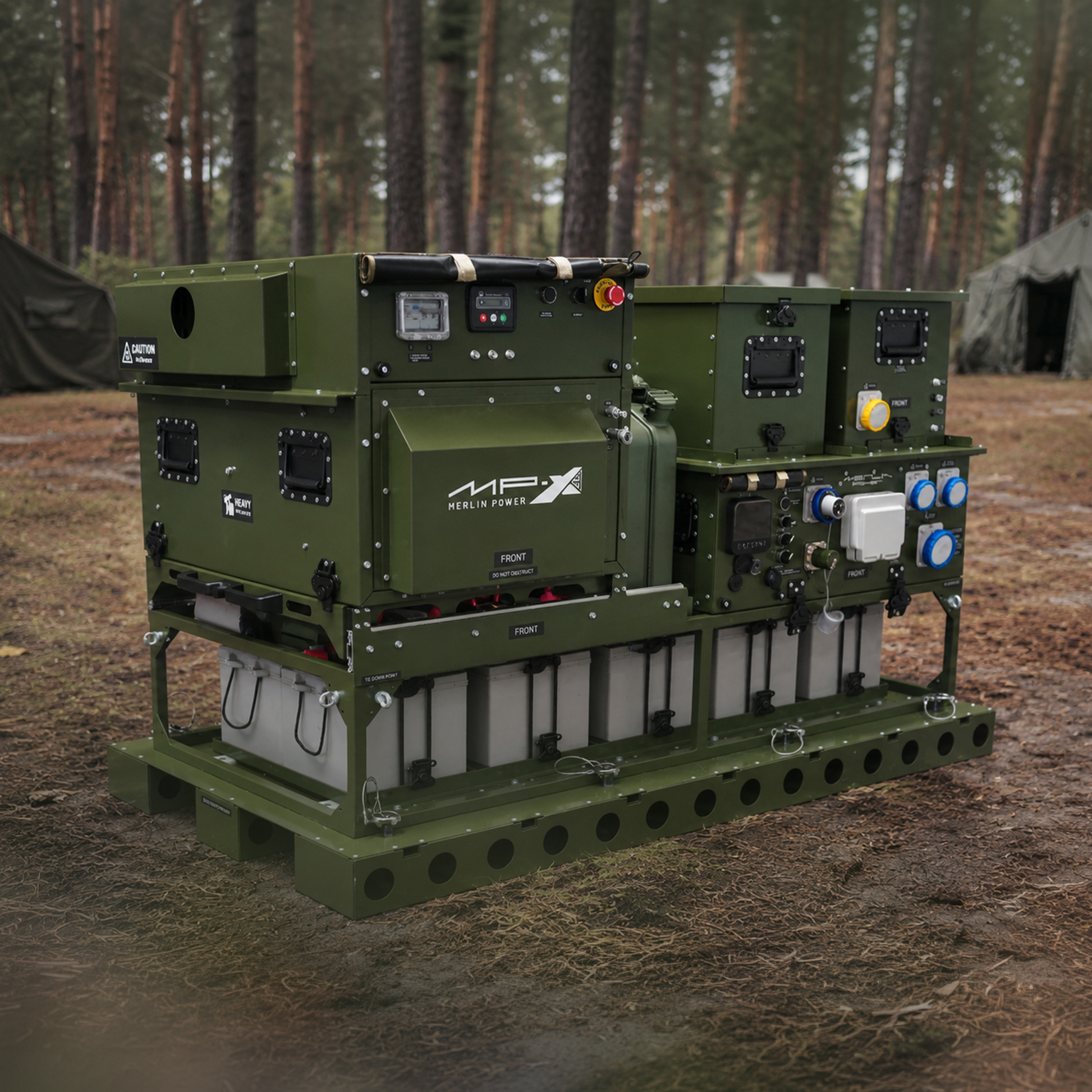

Merlin Power eXpeditionary (MP-X)
MP-X is a highly mobile, medium-to-large power solution for operating equipment up to 11.2kW (20kW peak output). It runs computers, comms, C-UAS, radar, weapons systems, tactical HQ, and medical and welfare equipment.
It brings a large battery bank and inverter for extended silent power, a UPS system, a power booster and a diesel generator together in one modular hybrid system. MP-X works standalone or in unison with grid supplies and other generators, including FEPS.
NATO Stock Number (NSN):
SMALL FIELD POWER SYSTEM (MP-X) - AGM: 6110-99-368-1811
SMALL FIELD POWER SYSTEM (MP-X) - LI-ION: 6115-99-936-7989
Quality Assurance
MP-X is a highly mobile, modular, hybrid power system capable of delivering up to 20kW of peak power - enough to run tactical HQ, mission systems, counter-UAS, medical, radar and most 24V, 110V and 230V equipment in use today. It was developed to increase the availability of power to command elements at precisely the moment it matters most, being deployable in under five minutes to support fast-tempo operations.
The unit combines a 4.8kW diesel generator, a 6.4kW inverter and up to 36kWh of battery. These are intelligently managed and combined to provide up to 11.2kW of power continuously. The MP-X can also provide up to 500A continuously for running 24V equipment, charging, and jump-starting vehicles. Running silently on the inverter alone, it’s capable of delivering power for 18 hours at 1.5kW or 9 hours at 3kW. It also connects to other power sources including the grid, conventional generators and 24V vehicle power.

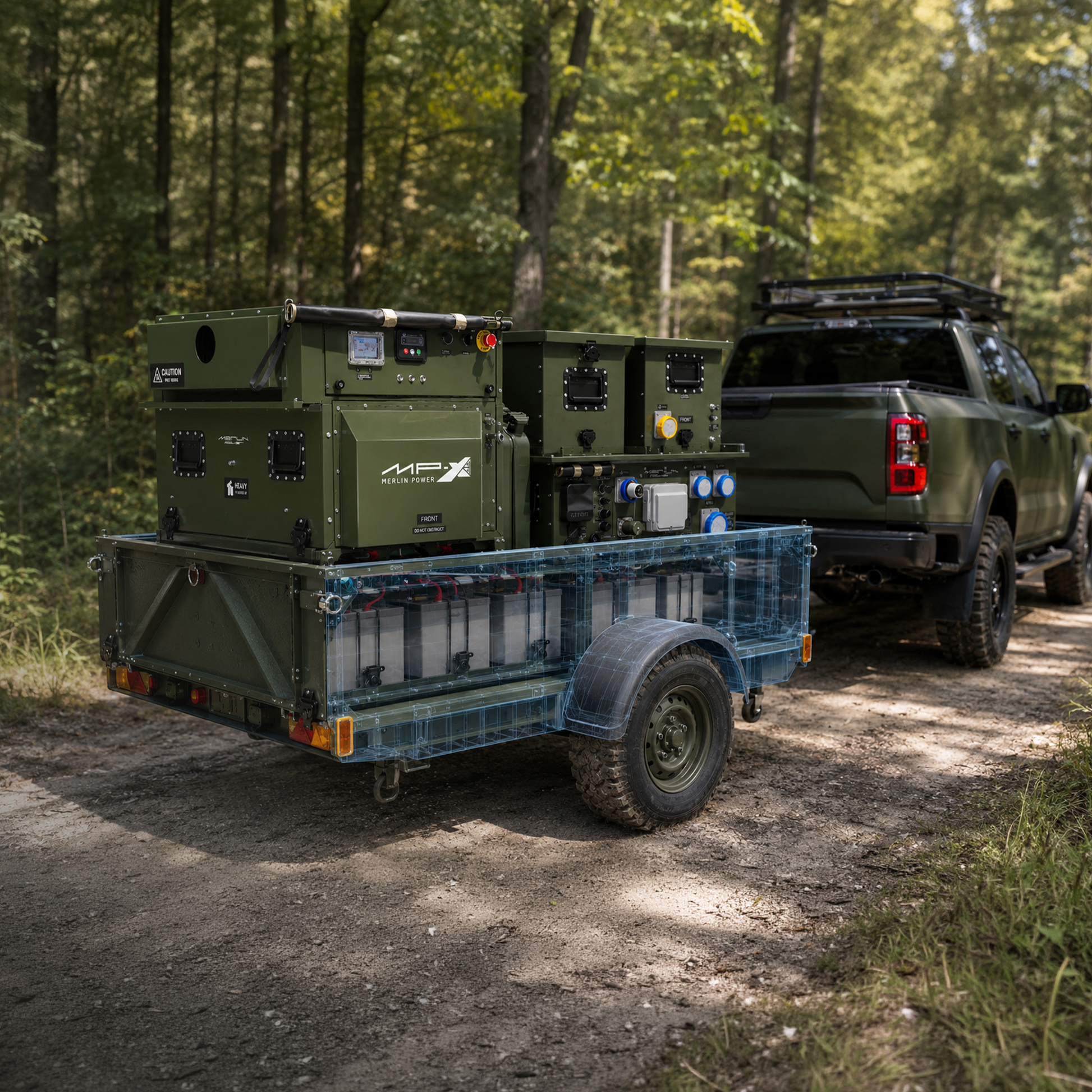

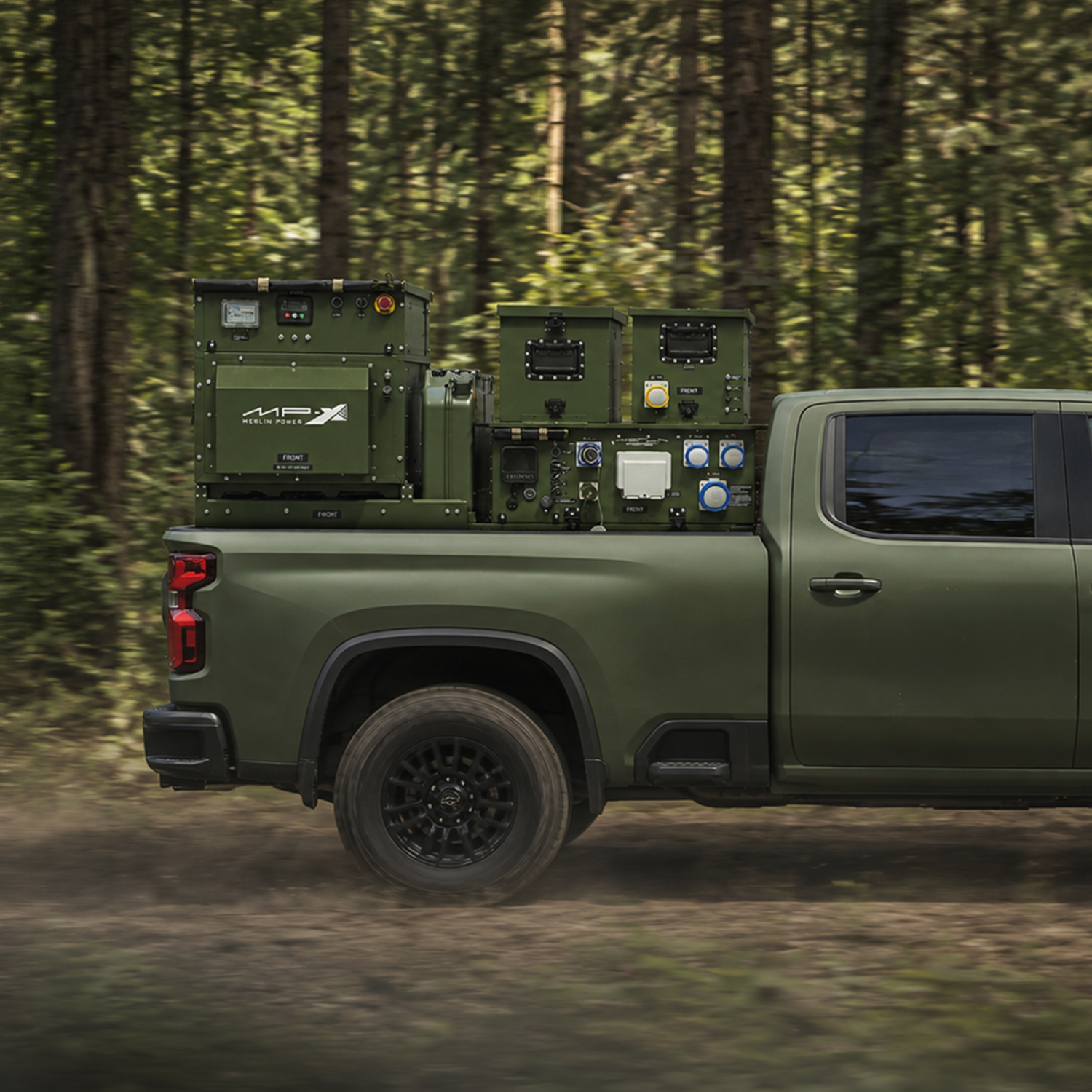

Additionally, MP-X is designed to be loaded, unloaded and deployed without Material Handling Equipment (MHE), and it can be transported by virtually any vehicle, bringing power right to the front line.
That ease of use carries through to operation, too. Automatic generator start/stop based on load and battery status, automatic flat-battery protection and automatic load assist mean just three selector switches govern almost all features — intelligence enabled by the Merlin DataCell II, the world's most accurate battery monitor.
Inverter: 8kVA (6.4kW) pure sine-wave
Generator Output: 4.8kW
Peak Output Power: 20kW
DC Output: up to 500A at 24V
Silent Running @3kW: Up to 9hrs
Silent Running @1.5kW: Up to 18hrs
Deploy / Pack Down: <10min, no tools required
Battery Options: Lead Acid AGM or Lithium-Ion
AGM Nato Stock Number: SMALL FIELD POWER SYSTEM (MP-X) - AGM: 6110-99-368-1811
LI-ION Nato Stock Number: SMALL FIELD POWER SYSTEM (MP-X) - LI-ION: 6115-99-936-7989
*All specifications are provided in best possible faith but may be subject to change without notice. All business is transacted according to our Standard Terms & Conditions, a copy of which is available upon request.
