04-6005
DC-DC Charger Remote
Campervans
RVs
Vans
Off-Road
Jeeps
Marine
Lithium Applications
Blue Light
Fleet Vehicles
HGVs

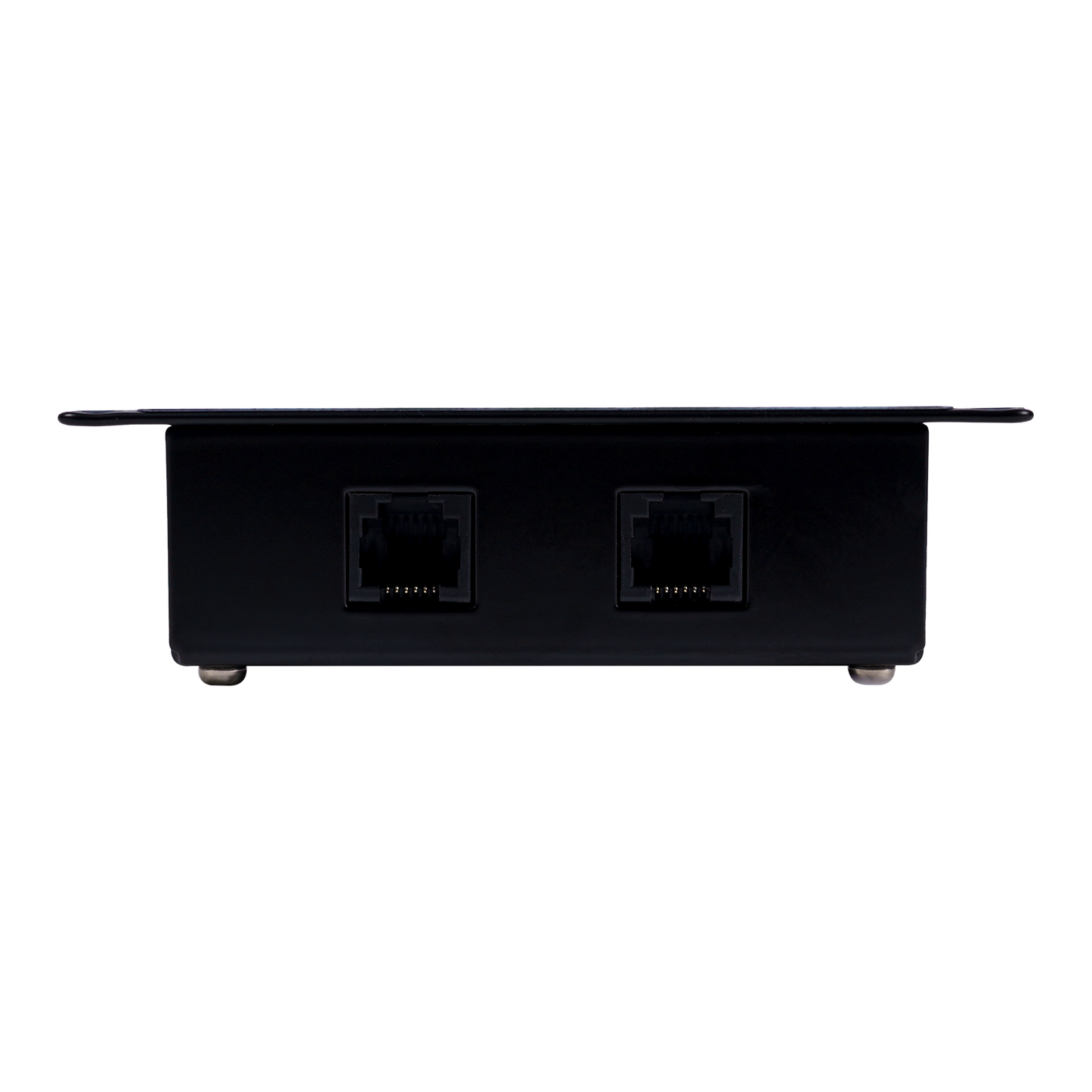

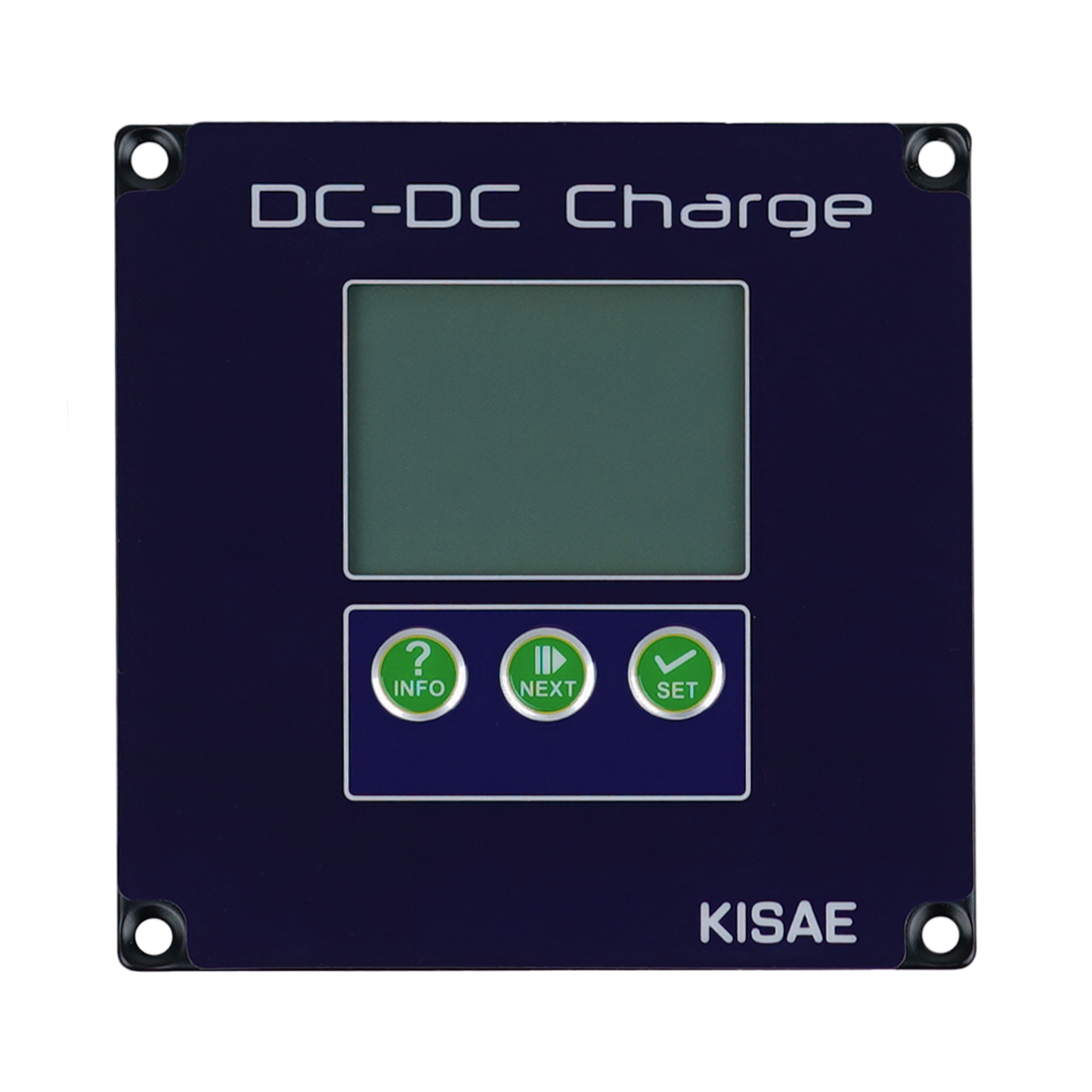

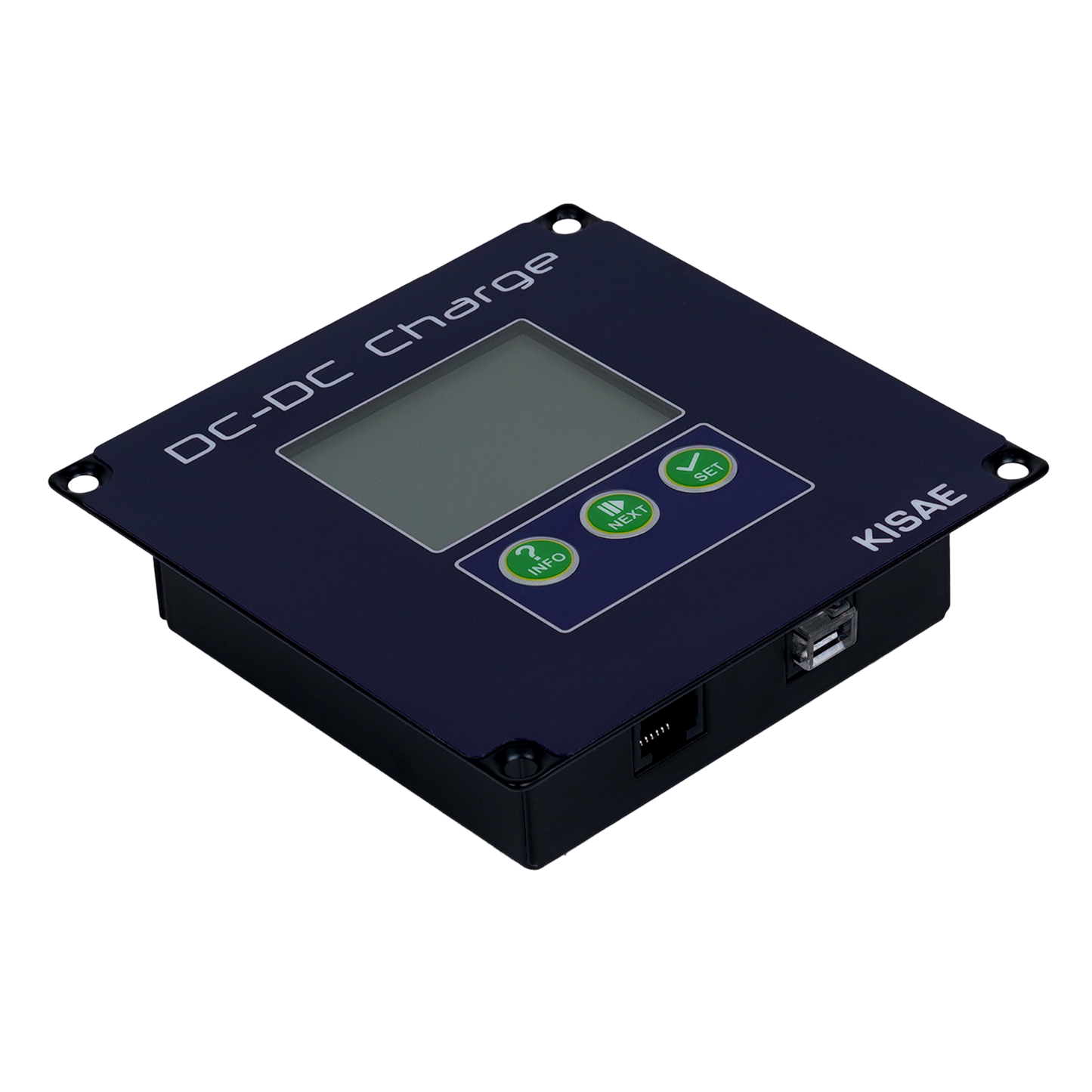

The Merlin DC-DC Charger Remote allows the user to monitor status and perform unit settings remotely.
Remote monitoring and control to check charge status and adjust unit settings from a convenient location.
5-Year Warranty
IN STOCK - delivery in 1-3 business days
Regular price
£102.48 GBP
Regular price
£102.48 GBP
Sale price
Unit price
per
£102.48 GBP
Inc. VAT: £122.98
Couldn't load pickup availability
| Product Name | Merlin Part # | Rating | DC Output Current (Maximum) | Output Voltage Charge Range | Output Voltage Float Range | Output Voltage Equalise Range | Output Voltage Range Charging Control | DC Output Bank | Output voltage range Efficiency | Battery Type Programmes | Battery/Alternator DC Input Range | Battery/Alternator DC Input Nominal Operation | Battery/Alternator Engine Start Control: On | Battery/Alternator Engine Start Control: Off | Battery/Alternator Maximum Input Current | PV DC Input Range | PV DC Input Nominal Operation | PV MPPT Tracking Efficiency | DC Output Reverse Polarity Protection | DC Output Short-Circuit Protection | DC Output Over Charge Protection | DC Output Cooling Protection | Display Panel | Digital Display | Weight (Kg) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

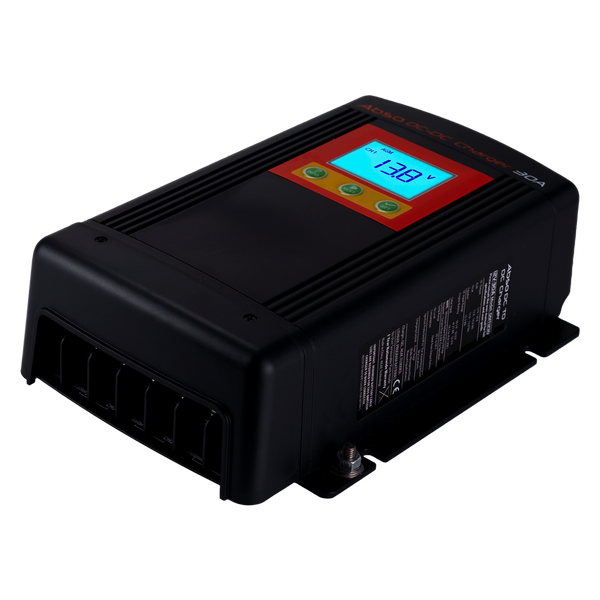

| DC-DC Charger 30A 12V In Stock | 04-6002 | 30A, 12V | 30A | 13.5 - 15.5V | 13 - 13.8V | 15.5V | 5 Stages | One | > 90% | Gel, AGM, Flooded, Lithium | 10.5 - 32VDC | 12.8V for 12V Charging System, 25.6V for 24V Charging System | DC Input from Battery/Alternator | DC Input from PV Input | 30A | 10 - 50VDC | 17.5VDC for 12V PV Panels Connected in Parallel, 35VDC for Dual 12V PV Panels Connected in Series | >98% | Yes (Shutdown), Auto Reset | Yes (Shutdown), Auto Reset | Yes (Shutdown), Auto Reset | Force Air Ventilation | LED Display with Back Lighting | Voltage, Current, Status | 1.85 | 242x172x74 |
| DC-DC Charger 50A 12V In Stock | 04-6003 | 50A, 12V | 50A | 13.5 - 15.5V | 13 - 13.8V | 15.5V | 5 Stages | One | > 90% | Gel, AGM, Flooded, Lithium | 10.5 - 32VDC | 12.8V for 12V Charging System, 25.6V for 24V Charging System | DC Input from Battery/Alternator | DC Input from PV Input | 30A | 10 - 50VDC | 17.5VDC for 12V PV Panels Connected in Parallel, 35VDC for Dual 12V PV Panels Connected in Series | >98% | Yes (Shutdown), Auto Reset | Yes (Shutdown), Auto Reset | Yes (Shutdown), Auto Reset | Force Air Ventilation | LED Display with Back Lighting | Voltage, Current, Status | 1.85 | 242x172x74 |
| DC-DC Charger 30A 24V In Stock | 04-6004 | 30A, 24V | 30A | 27 - 31V | 26 - 27.6V | 31V | 5 Stages | One | > 90% | Gel, AGM, Flooded, Lithium | 10.5 - 32VDC | 12.8V for 12V Charging System, 25.6V for 24V Charging System | DC Input from Battery/Alternator | DC Input from PV Input | 30A | 10 - 50VDC | 17.5VDC for 12V PV Panels Connected in Parallel, 35VDC for Dual 12V PV Panels Connected in Series | >98% | Yes (Shutdown), Auto Reset | Yes (Shutdown), Auto Reset | Yes (Shutdown), Auto Reset | Force Air Ventilation | LED Display with Back Lighting | Voltage, Current, Status | 1.85 | 242x172x74 |
| DC-DC Charger 100A 12V In Stock | 04-6006 | 100A, 12V | 100A | 13.5 - 15.5V | 13 - 13.8V | 15.5V | 5 Stages | One | > 90% | Gel, AGM, Flooded, Lithium | 10.5 - 32VDC | 12.8V for 12V Charging System, 25.6V for 24V Charging System | DC Input from Battery/Alternator | DC Input from PV Input | 30A | 10 - 50VDC | 17.5VDC for 12V PV Panels Connected in Parallel, 35VDC for Dual 12V PV Panels Connected in Series | >98% | Yes (Shutdown), Auto Reset | Yes (Shutdown), Auto Reset | Yes (Shutdown), Auto Reset | Force Air Ventilation | LED Display with Back Lighting | Voltage, Current, Status | 3.23 | 356x205x97 |
