• Wakespeed 500 Pro Bluetooth® Alternator Regulator
1 2

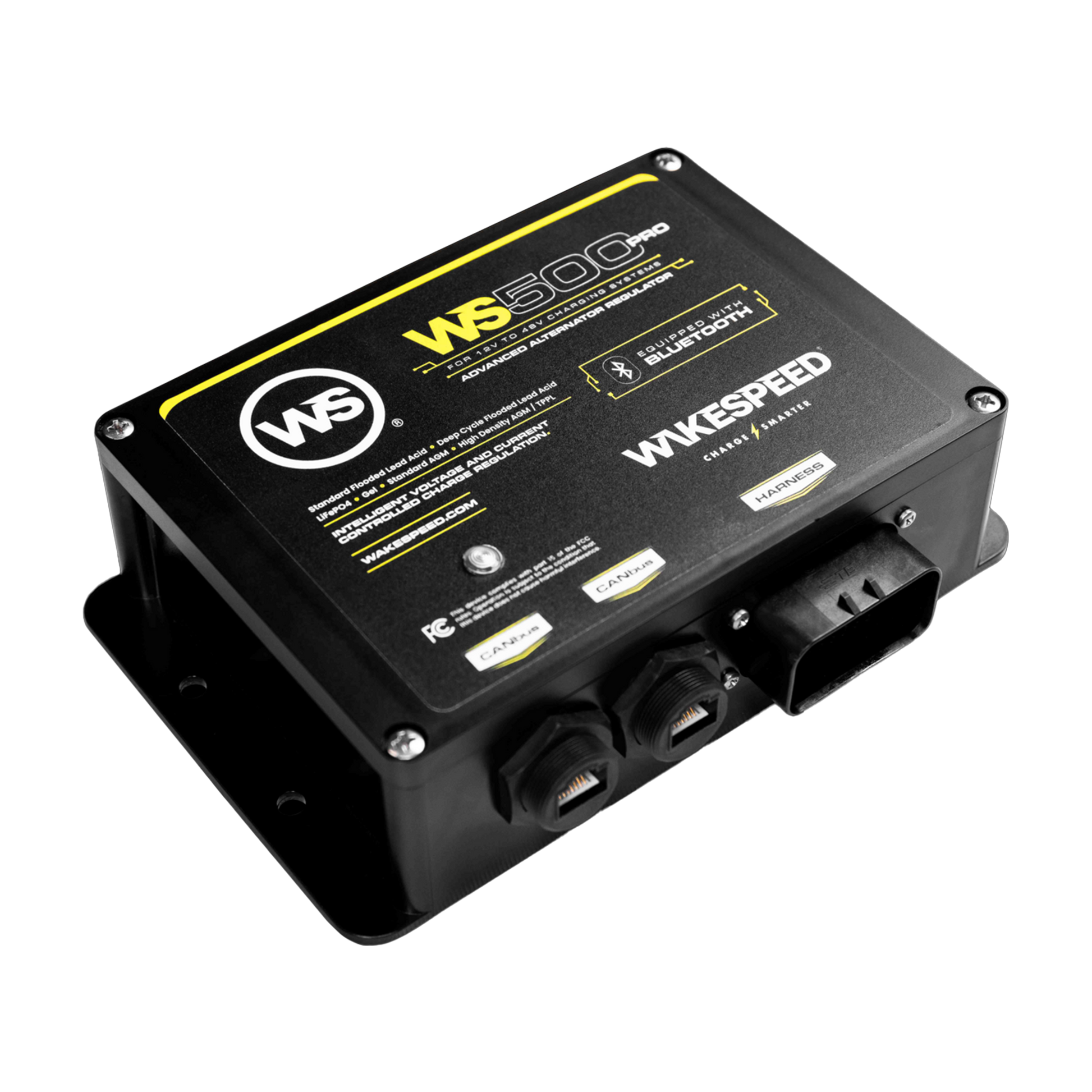

Wakespeed 500 Pro Bluetooth® Alternator Regulator

05-5002

£660.23 GBP
£660.23 GBP
£660.23 GBP

Inc. VAT: £792.28

Marine Marine
Vehicles Vehicles
Vans Vans
Fleet Vehicles Fleet Vehicles

The Wakespeed WS500 Pro builds upon the success of the popular WS500 Advanced Alternator Regulator, introducing Bluetooth connectivity for unmatched convenience.

<strong>Bluetooth connectivity</strong> for remote, real-time monitoring. Bluetooth connectivity for remote, real-time monitoring.
Compatible with <strong>lead acid, AGM & lithium batteries.</strong> Compatible with lead acid, AGM & lithium batteries.
<strong>Easy 'Plug-n-Go' install</strong> feature that automatically configures settings. Easy 'Plug-n-Go' install feature that automatically configures settings.
<strong>Fully customisable configurations</strong> available for more than 100 user controls. Fully customisable configurations available for more than 100 user controls.
5-Year Warranty 5-Year Warranty
Buy with confidence knowing your product is covered by our market-leading 5-year warranty policy.

LOW STOCK - delivery in 1-3 business days
PayPalApple Pay Google Pay MaestroMastercardVisa
🤝   Buying as a business?Click here to apply for a trade account and gain access to B2B benefits and personalised pricing.

PRODUCT DETAILS

The WS500 Pro utilises current, voltage, and temperature to deliver the most precise and effective charging possible for 12V, 24V and 48V battery systems – with configurability for voltages in between – and allows users to optimise their mobile power systems, unlocking faster charging speeds, increased efficiency, and seamless integration with numerous battery systems.

Paired with the Wakespeed Configuration and Monitoring Utility Mobile App, users can now wirelessly configure, update, and monitor their alternator charging directly from their smartphones with the WS500 Pro. This newly integrated communication technology and intuitive app, available for both iPhone and Android, also unlocks the potential for exciting future features, ensuring the WS500 Pro Bluetooth® Alternator Regulator remains at the forefront of power management innovation.

DOWNLOADS

Wakespeed 500 Pro Bluetooth® Alternator Regulator Datasheet.pdf
Warranty Policy

Wakespeed 500 Pro Recommended Products

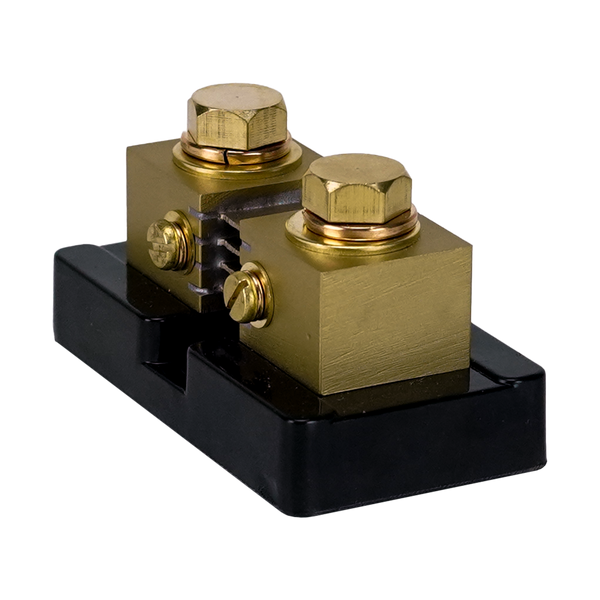

DataCell II 500A 50mV Shunt
DataCell II 500A 50mV Shunt
£42.80
View this product

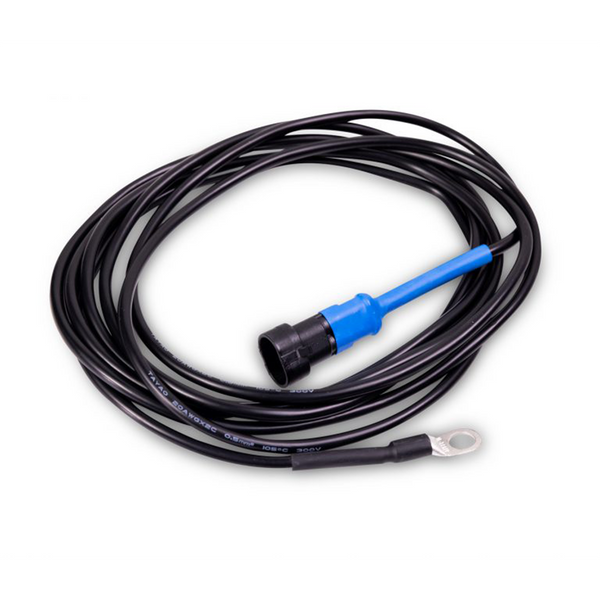

Wakespeed 10ft Cable w/ Waterproof Connector (Temp Sensor)
Wakespeed 10ft Cable w/ Waterproof Connector (Temp Sensor)
£43.96
View this product

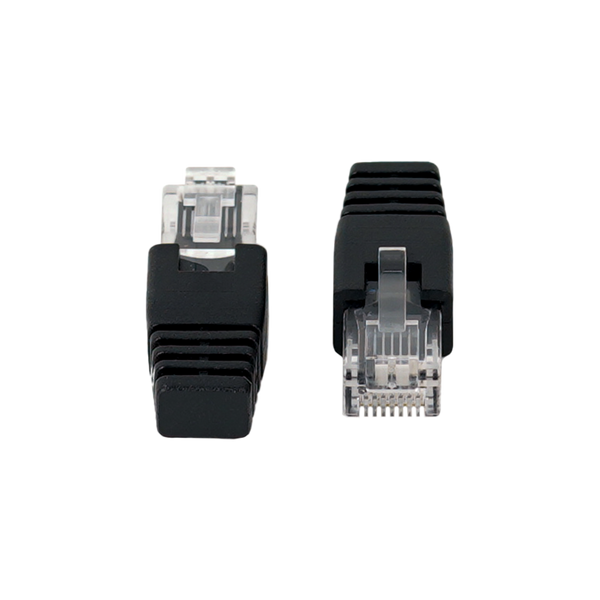

Wakespeed Data Terminator Kit
Wakespeed Data Terminator Kit
£27.59
View this product

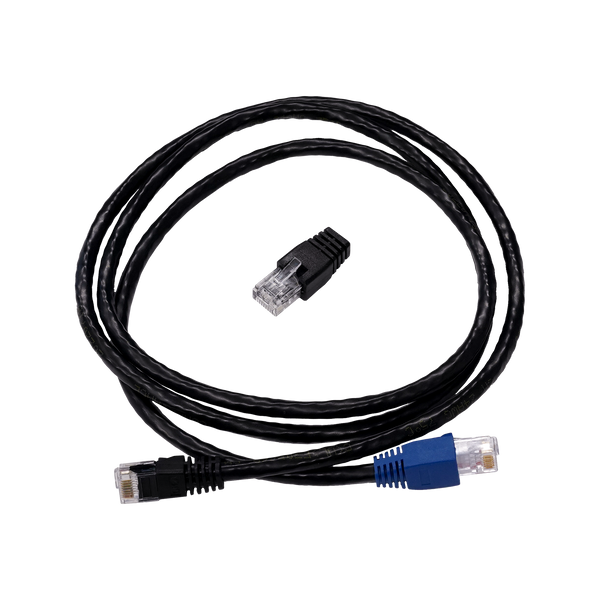

Wakespeed CAN Bus to VE Crossover Cable
Wakespeed CAN Bus to VE Crossover Cable
£50.42
View this product
Wakespeed Alternator Temperature Sensor Kit
Wakespeed Alternator Temperature Sensor Kit
£32.96
View this product
Wakespeed Advanced Wiring Harness (Positive) with CAN
Wakespeed Advanced Wiring Harness (Positive) with CAN
£120.94
View this product

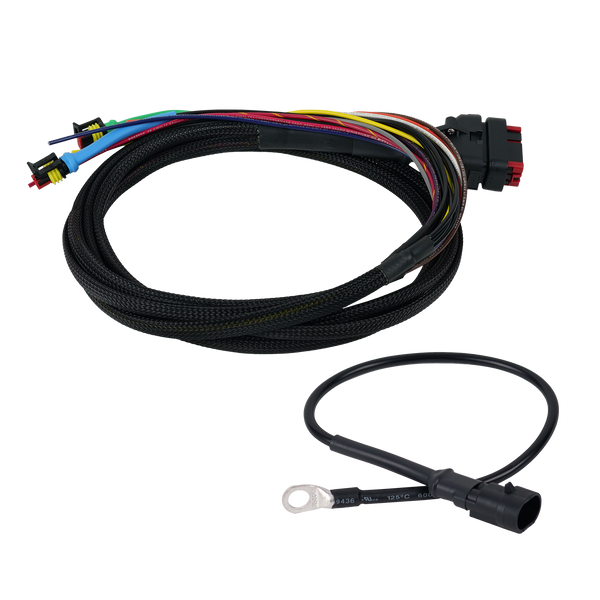

Wakespeed Advanced Wiring Harness (Negative) with Temp Sensor
Wakespeed Advanced Wiring Harness (Negative) with Temp Sensor
£120.94
View this product

How to Avoid Overcharging Your Boat’s Batteries & Burning Out Your Alternator

Product Name Merlin Part # System Voltage (12V, 24V 48V) System Voltage (Other) Field Polarity A-Type (N) Field Polarity B-Type (P) Regulation Capability Voltage Regulation Capability Current Regulation Capability Temperature Basic Configuration Via Wakespeed App Battery Charger Profiles 8 Preset Programs Battery Charge Phase Criteria Advanced Configuration Via App Communication (CAN) Field Output Control (Default Values) Field Output Control (Advanced Configurable) Temperature Sensing (Alternator) Temperature Sensing (Battery) Temperature Sensing (Internal) Dimensions (LxWxH) (MM) Weight (kg) Certification Wiring Harness Terminal Connections
Wakespeed 500 Pro Bluetooth® Alternator Regulator Low Stock 05-5002 Yes, Auto Detected Yes, Custom Adjustable Select Compatible Wiring Harness to Match Alternator Polarity Select Compatible Wiring Harness to Match Alternator Polarity Yes, Via Sense Wires Included in Wiring Harness Yes, Via Amp Shunt Yes, Via Alternator and Battery Temperature Sensors Fully Customised/Optimised Configuration for Battery, Alternator and System Via Bluetooth AGM, Standard FLA, Deep Cycle FLA, HD AGM, GEL, Carbon Foam, Custom #1, Custom #2 (LifeP04) Flexible Charging Protocol Access to Monitoring, Programming and Diagnostic Functions Via Bluetooth Yes, J1939-Based CAN Large Alternator Mode (100%), Small Alternator Mode (75%), Half Power Mode (50%) Maximum Field Bandwidth Adjustable From 0% to 100% Yes, Included in Wiring Harness (Sold Seperately) Yes, Battery Temperature Sensor Cable (Sold Seperately) Yes 190x120x48 0.762 CE Certified & FCC Compliant Colour-Coded Tinned Wire Ampseal 23-Pin Waterproof Ruggedized RJ45 (CAN)
Wakespeed 500 Pro Bluetooth® Alternator Regulator
£660.23 Ex VAT
£792.28 Inc VAT
