1000w Inverter 12V - Auto Xfer

01-8051

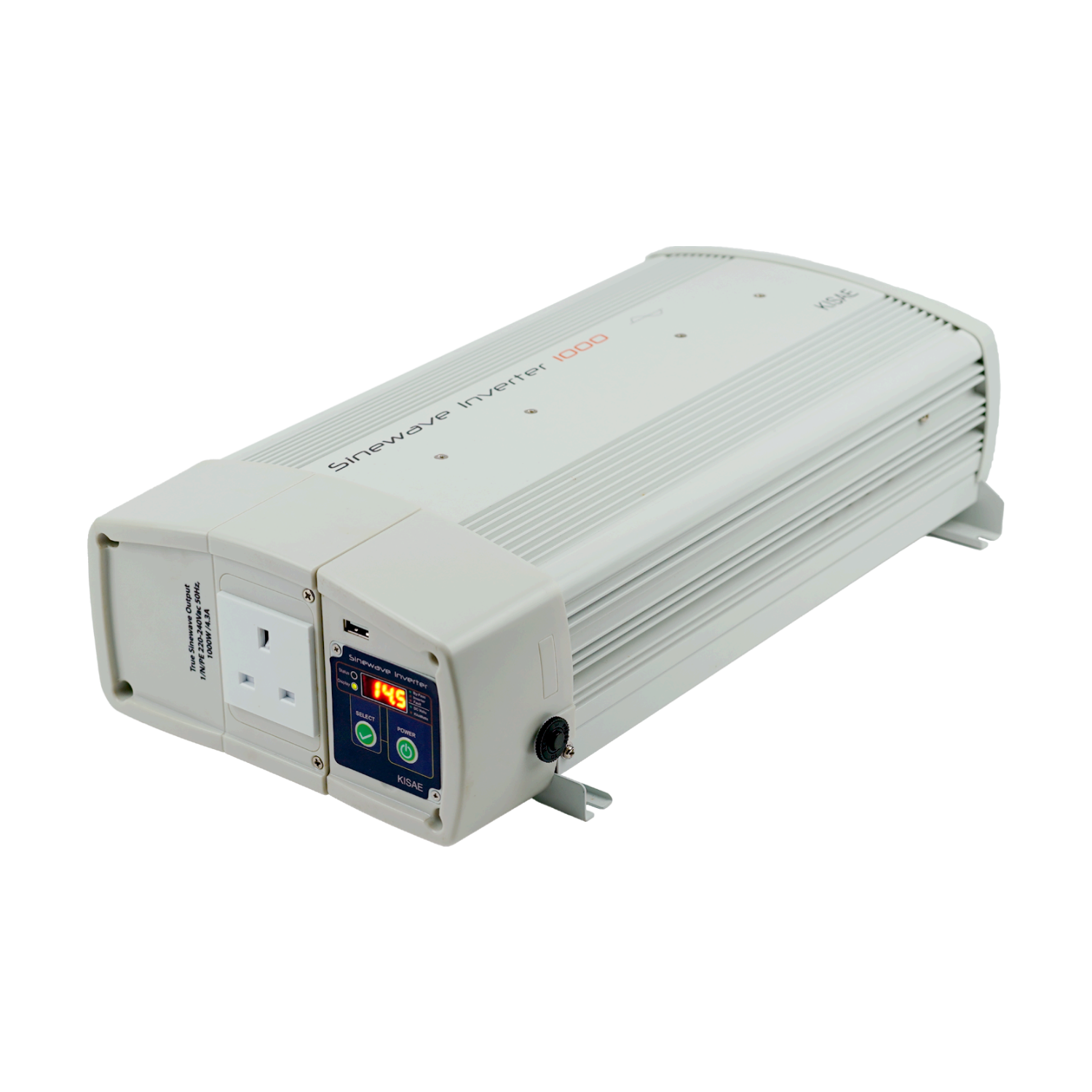

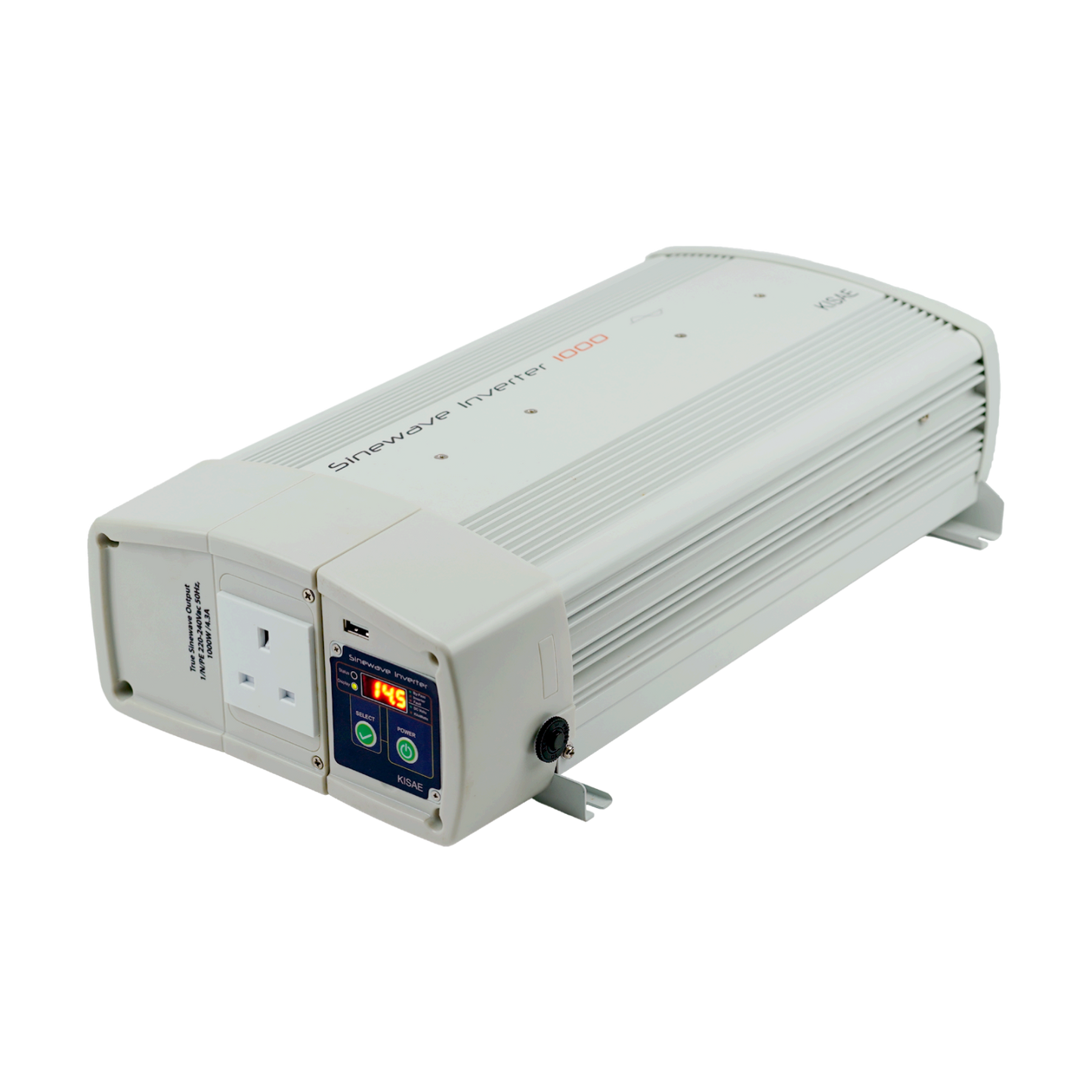

The Merlin 1000w 12V Inverter - Auto Xfer provides the ability to automatically switch between shorepower as a source and onboard battery power as another.

VIEW OUR FULL RANGE HERE
£538.65 GBP
£0.00 GBP
£538.65 GBP
Sale Sold out

PRODUCT DETAILS

If you wish to fit an inverter and also have shorepower, a method of selecting between them must be fitted. This can be a manual switch or remote transfer relay. Merlin Auto Changeover Inverters already have the transfer relay built in. When shorepower is available, the relay will allow power to bypass the inverter and feed the onboard ring main. As soon as shorepower is disconnected, the relay will allow inverter power to feed the ring main. It works in the same way as a UPS system.

TECHNICAL SPECIFICATIONS

MANUALS

1000w_Inverter_12V-Auto_Xfer_-_01-8051_-_Manual.pdf

TECHNICAL SUPPORT

Error codes and what they mean:

E01 The unit has sensed input under the prescribed voltage and has shut
down. Check the battery voltage and recharge the battery if it is below 12V. If
the voltage is above 12V, check the DC wiring and the fuse.

E02 The unit has sensed input over the prescribed voltage and has shut
down. Check the battery voltage and charging sources, shutdown occurs at 15.5V.

E03 The unit output has sensed an overload or short circuit and has shut
down. Disconnect all AC equipment. Eliminate any faulty AC equipment by testing
it individually.

E04 The unit has sensed that the internal temperature was high and it has
shut down. Switch off the inverter to allow it to cool down (for a minimum of
15 minutes). Check the airflow of the unit.
