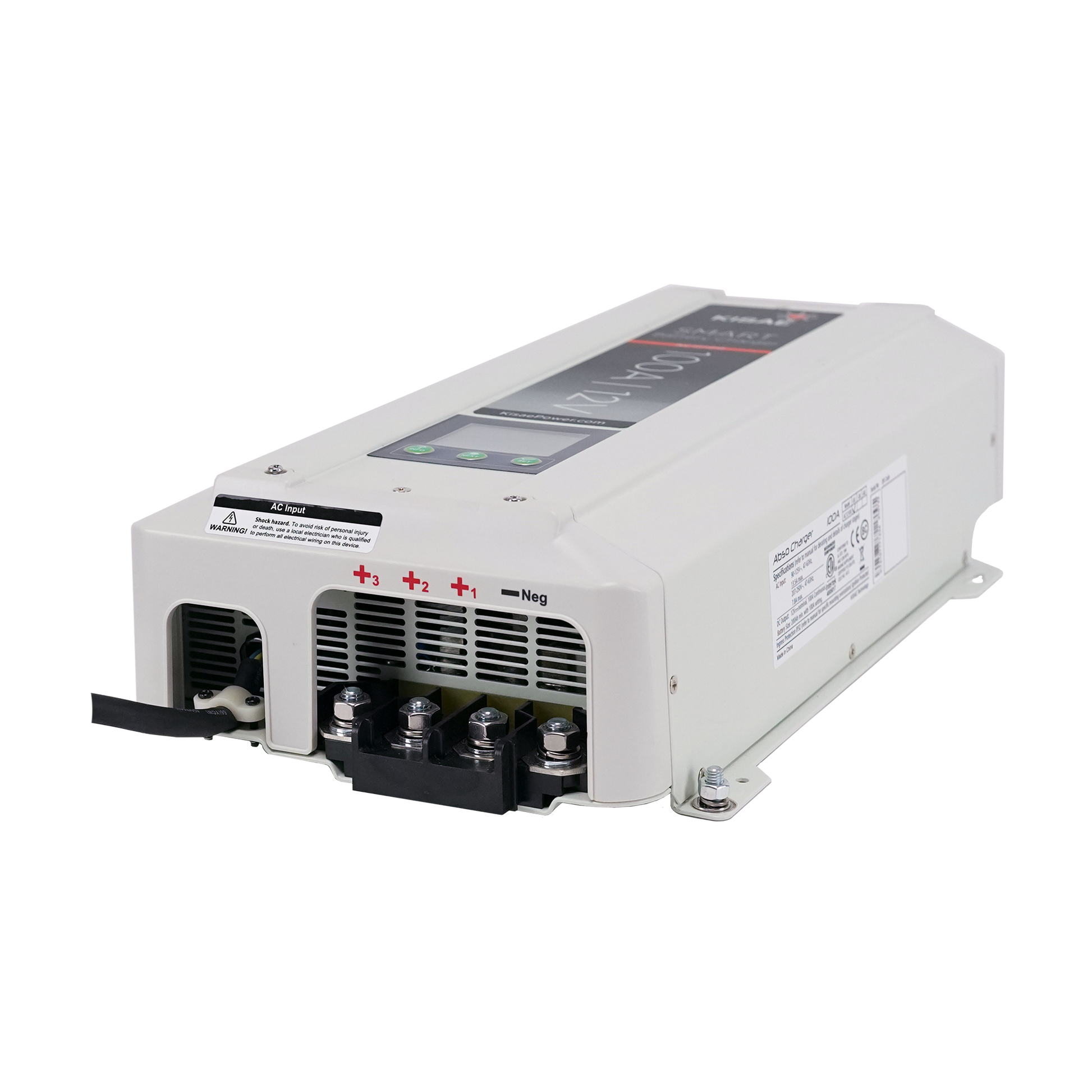

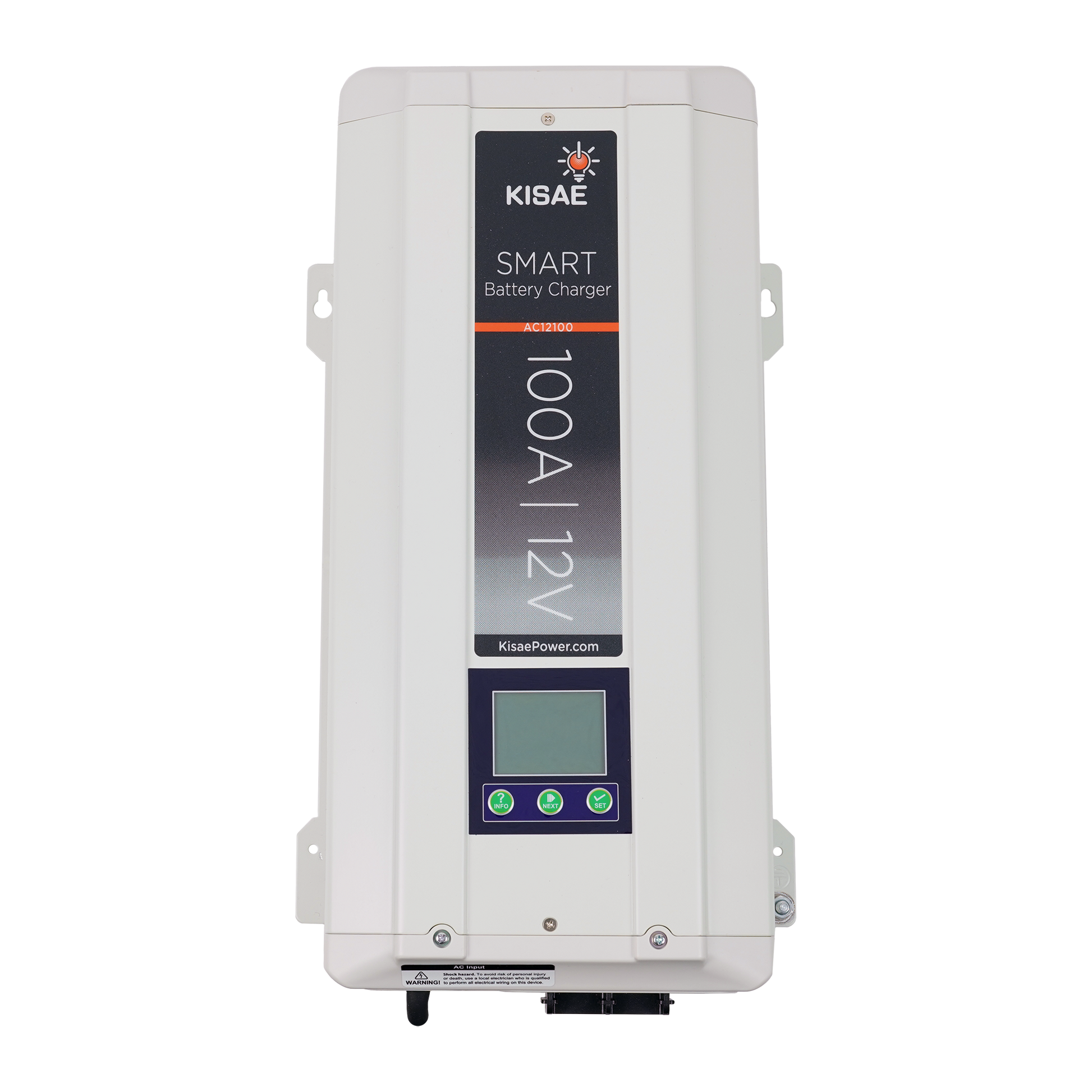

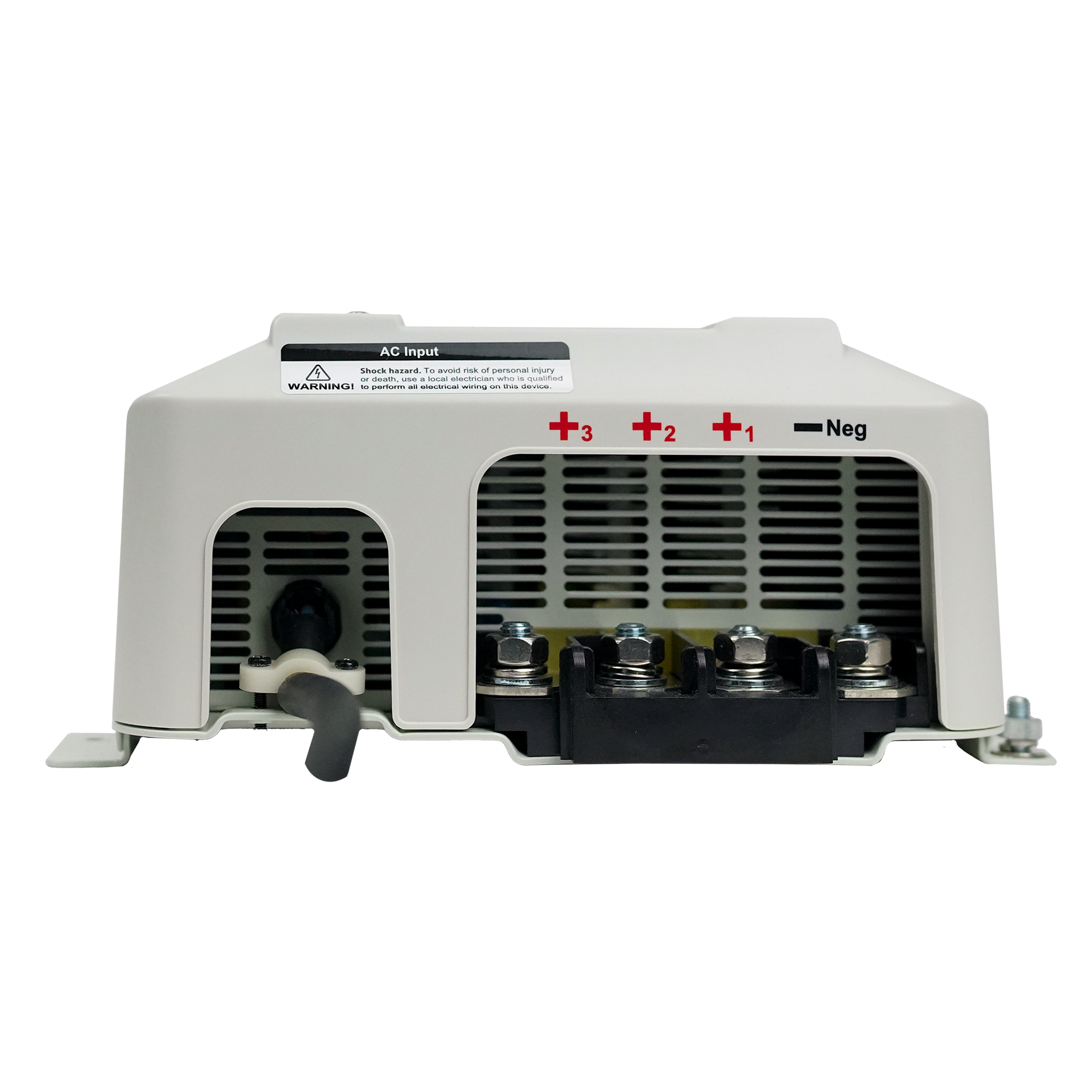

100A Charger 12V - 3 Output

02-3100

The Merlin 100A Charger 12V - 3 Output offers fully automatic, multi-stage battery charging, with the ability to charge three separate battery banks. The ultimate set-and-forget charger, this charger in-corporates special charging algorithms designed to quickly and accurately recharge and maximize the life of AGM, Gel, Flooded or Lithium batteries. It will also charge multiple battery chemistries simultaneously.

VIEW OUR FULL RANGE HERE
Regular price
£662.09 GBP
Regular price £0.00 GBP Sale price
£662.09 GBP
Sale Sold out

PRODUCT DETAILS

Merlin Smart Battery Chargers are fully adaptive 4 stage chargers. High quality internal electronics give one of the lowest AC ripple outputs in the industry.

Each output can be:
- set for normal, simultaneous, or priority charging,
- set for a different battery chemistry (lead/acid, Gel, AGM, or lithium-ion),
- current and voltage limited,
- set independently for temperature, making them perfect for charging either multiple batteries that differ greatly in size or chemistry, or for Lithium Ion Cells.

TECHNICAL SPECIFICATIONS

MANUALS

TECHNICAL SUPPORT

Error codes and what they mean:

E01 The unit has sensed input under the prescribed voltage and has shut
down. Check the battery voltage and recharge the battery if it is below 12V. If
the voltage is above 12V, check the DC wiring and the fuse.

E02 The unit has sensed input over the prescribed voltage and has shut
down. Check the battery voltage and charging sources, shutdown occurs at 15.5V.

E03 The unit output has sensed an overload or short circuit and has shut
down. Disconnect all AC equipment. Eliminate any faulty AC equipment by testing
it individually.

E04 The unit has sensed that the internal temperature was high and it has
shut down. Switch off the inverter to allow it to cool down (for a minimum of
15 minutes). Check the airflow of the unit.
