1000w Inverter 12V

01-8035

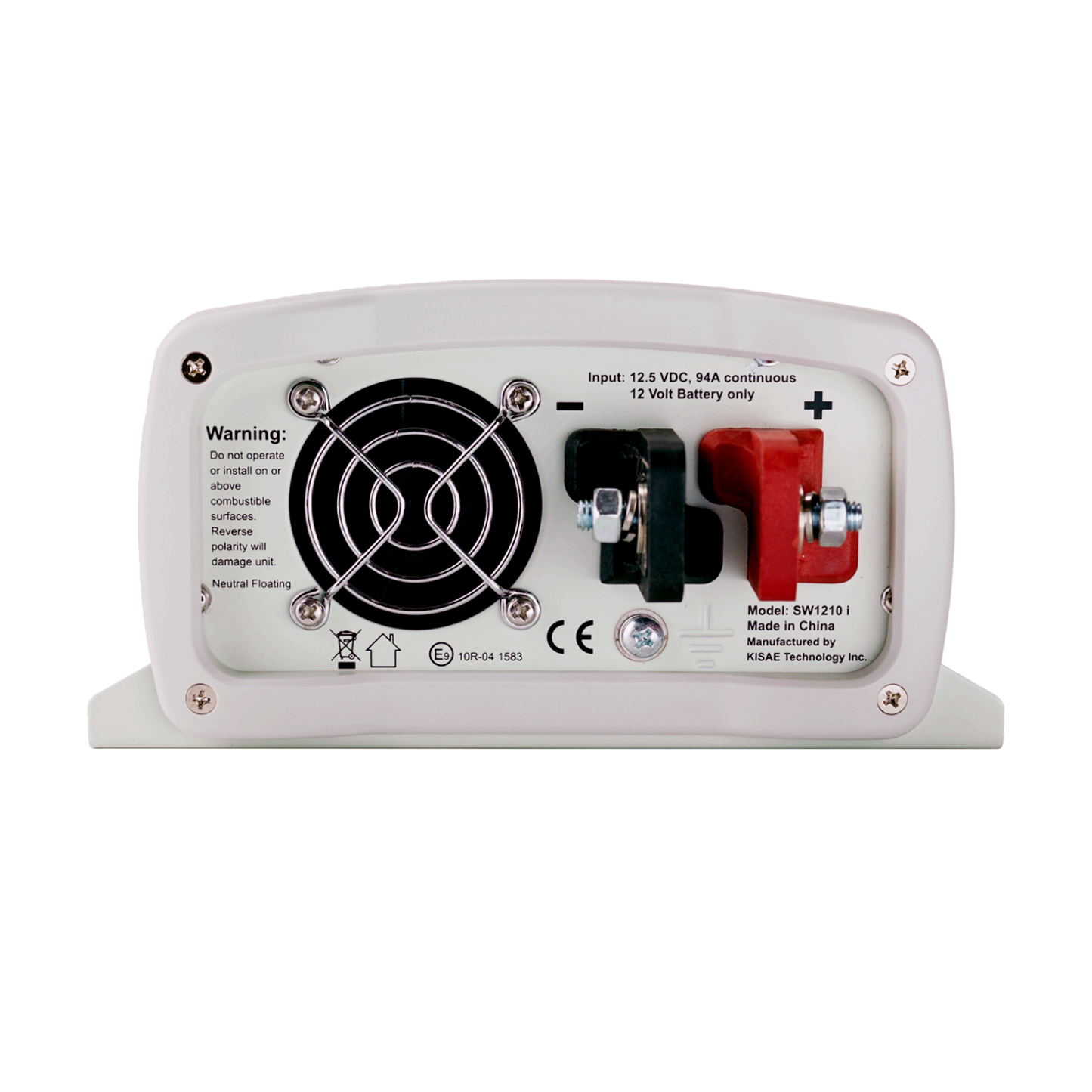

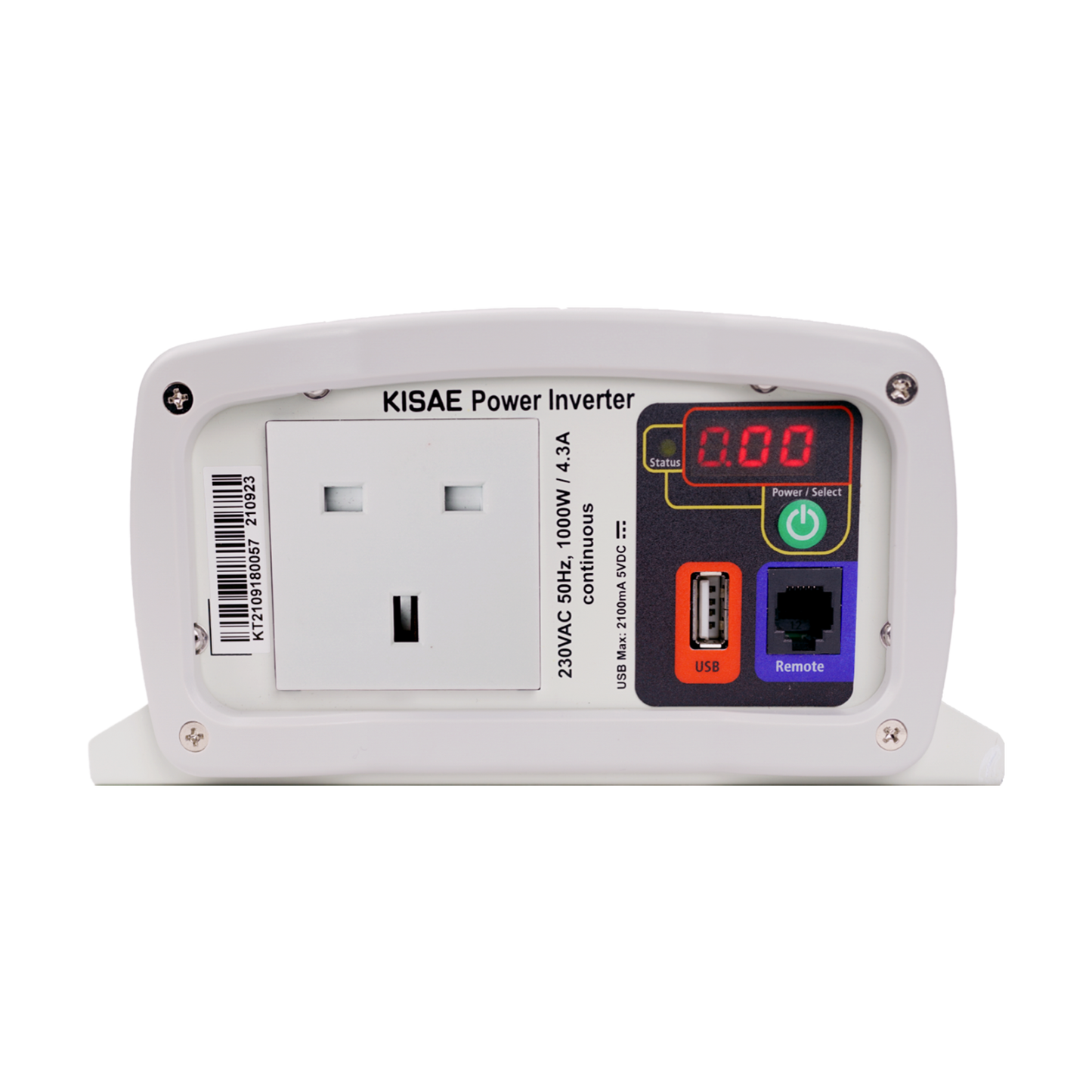

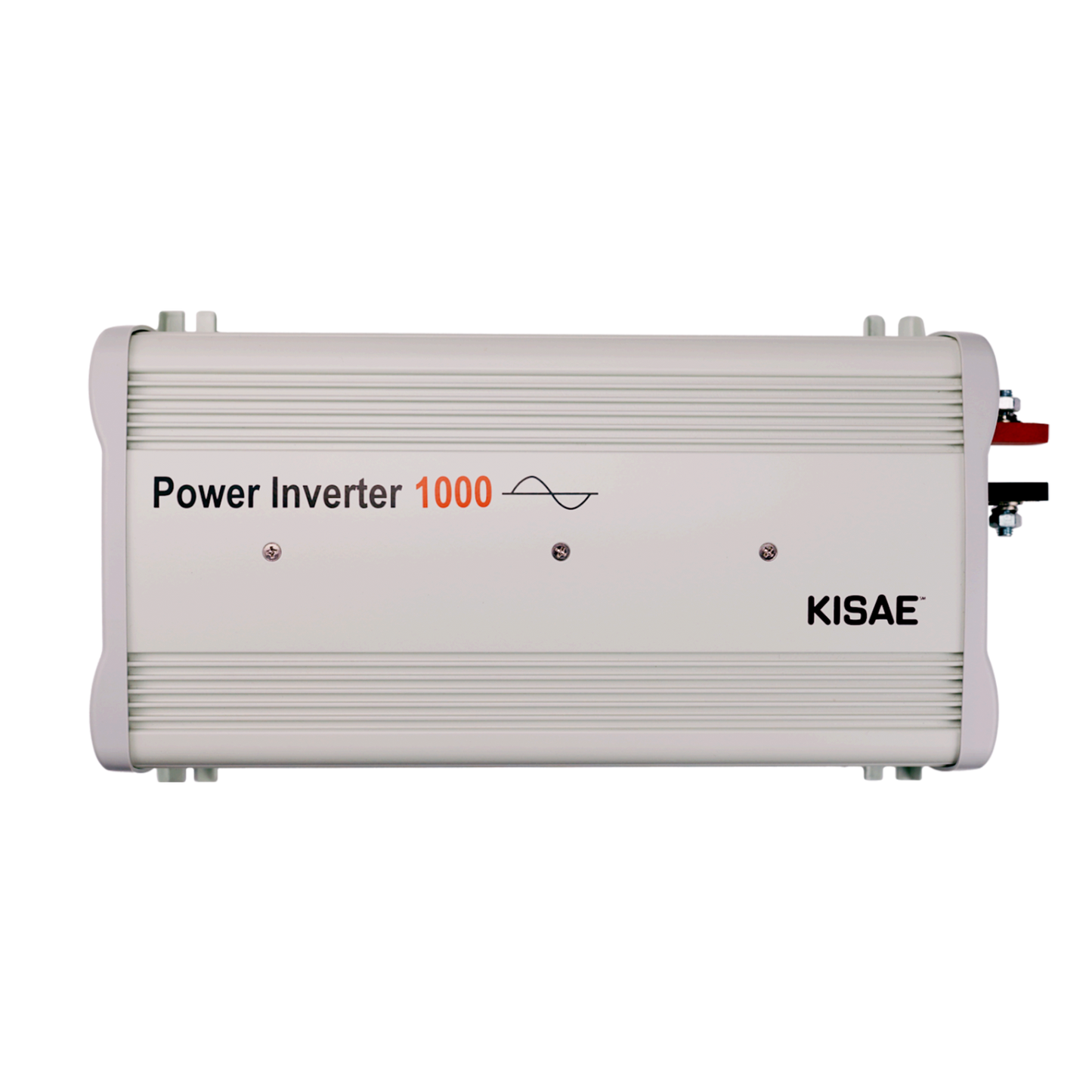

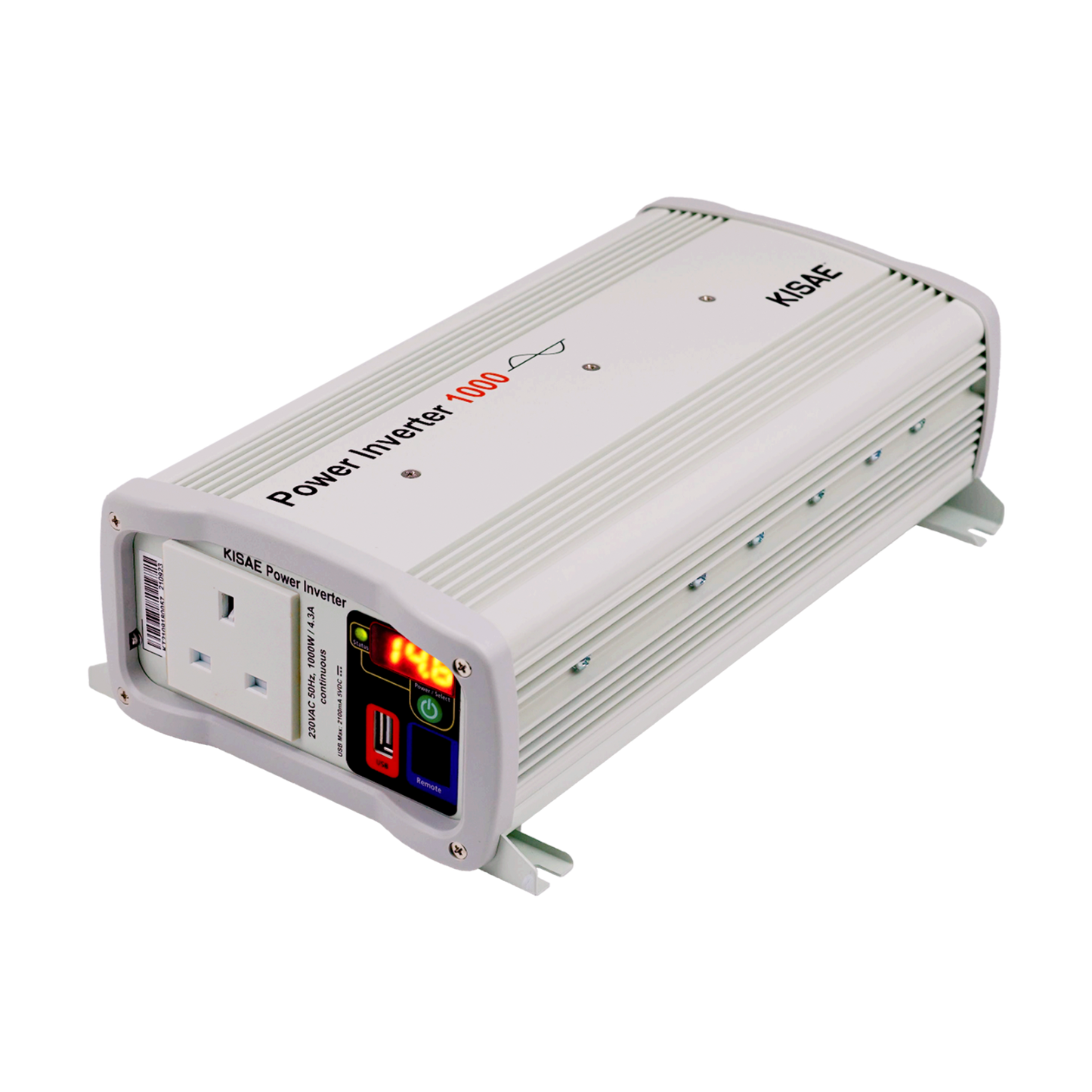

This Merlin 1000w 12V Inverter silently converts 12v DC battery power to 230v AC mains electricity using pure sinewave technology to provide an interference-free output that is fully compatible with even the most sensitive AC appliances.

VIEW OUR FULL RANGE HERE
£318.70 GBP
£0.00 GBP
£318.70 GBP
Sale Sold out

PRODUCT DETAILS

All Merlin Sinewave Inverters are rated for continuous output and feature low battery, overload, overheat, and short-circuit protection. Each inverter is continuously rated at up to 25°C to ensure continuous operation even at full power. Each inverter uses convective (non-fan assisted) cooling at low power and thermostatic fan cooling at higher outputs/ temperatures. Heavy duty DC connection hardware is provided for resistance-free connection to your battery system. 24V input models are available on request.

TECHNICAL SPECIFICATIONS

MANUALS

1000W_Inverter_12V_-_01-8035_-_Manual.pdf

TECHNICAL SUPPORT

Error codes and what they mean:

E01 The unit has sensed input under the prescribed voltage and has shut
down. Check the battery voltage and recharge the battery if it is below 12V. If
the voltage is above 12V, check the DC wiring and the fuse.

E02 The unit has sensed input over the prescribed voltage and has shut
down. Check the battery voltage and charging sources, shutdown occurs at 15.5V.

E03 The unit output has sensed an overload or short circuit and has shut
down. Disconnect all AC equipment. Eliminate any faulty AC equipment by testing
it individually.

E04 The unit has sensed that the internal temperature was high and it has
shut down. Switch off the inverter to allow it to cool down (for a minimum of
15 minutes). Check the airflow of the unit.
