Powersine Combi 3000-12-120

Marine

Campervans

RVs

Blue Light

Fleet Vehicles

Vans

HGVs

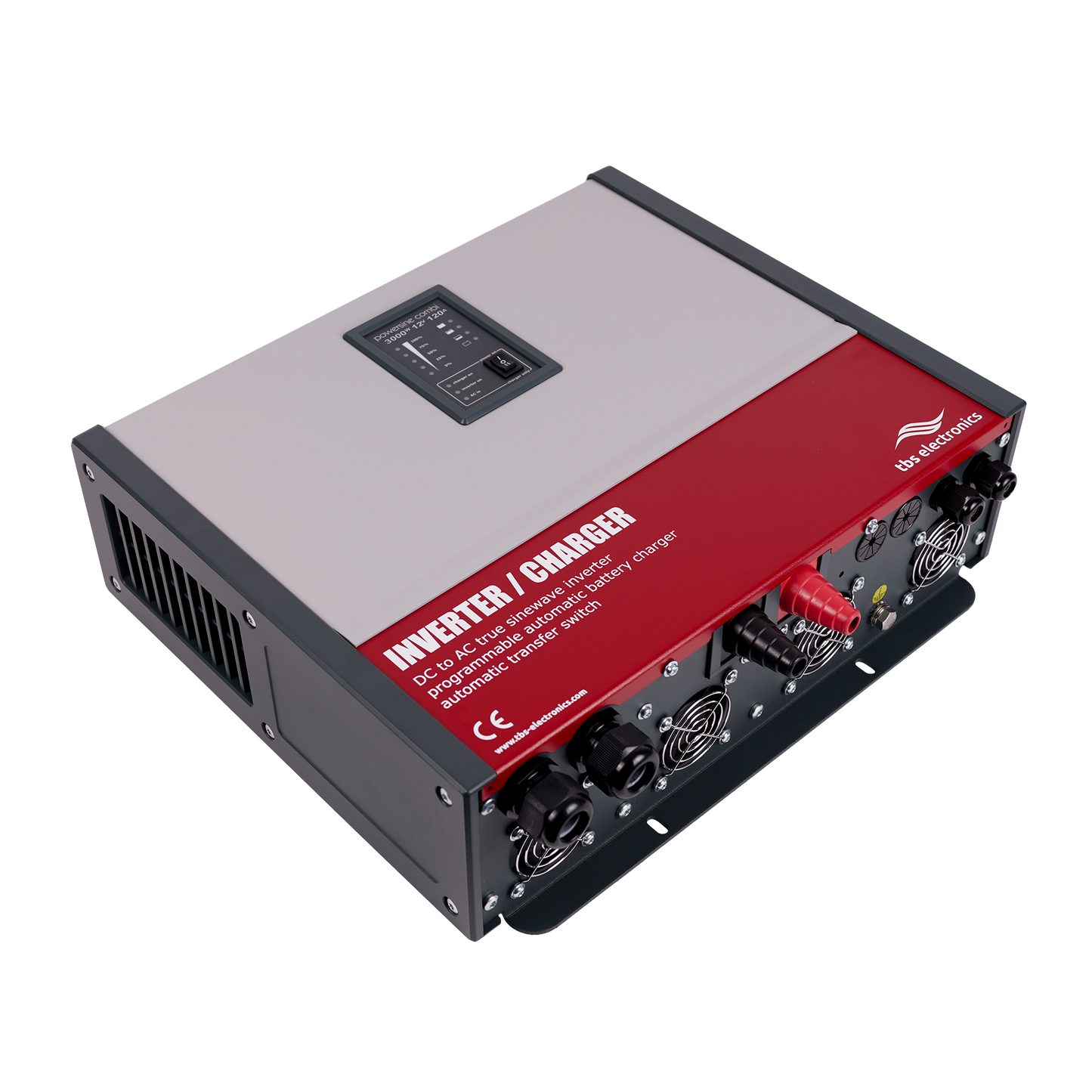

The Powersine Combi 3000-12-120 is designed for critical use applications where absolute reliability and outstanding performance is required to ensure mission success.

AC PowerBoost function allows you to operate larger electrical systems from smaller generators and shore-supplies.

AC input current limit function which limits the maximum current consumed from the AC input source by the Combi in charger mode.

Integrated transfer switch to switch seamlessly from AC power to DC power.

Robust industrial design suitable for extremely demanding and critical applications.

5-Year Warranty

Buy with confidence knowing your product is covered by our market-leading 5-year warranty policy.

LOW STOCK - delivery in 1-3 business days

Quantity

£1,880.42 GBP

~~£1,880.42 GBP~~

£1,880.42 GBP

Inc. VAT: £2,256.50

Buying as a business?

Benefit from custom pricing and direct access to a dedicated account manager.

Request a quote Apply for a trade account

Providing a pure-sinewave output with <5% THO with robust output electronics means that this unit may be safely used with the most sensitive of electrical loads, yet also be able to handle high inrush current for inductive items. This unit is perfect for off-grid, paramedic, out-side broadcast, surveillance and emergency back-up power applications.

The internal charger uses the same principles as our Extreme Duty Battery Chargers to ensure maximum life and performance from both lead-acid and lithium-ion battery technologies.

These units also features PowerBoost mode which allows the unit to assist low power generators and shore-supplies to run electrical loads. It works like this:

Say, a lkW generator is plugged into your vehicle. You are running a computer from your AC ring main and the Merlin Combi is in charger mode. Because the powerful charger in the Merlin Combi is too large for the generator, the unit has derated the charger so that it pulls less current and prevents overload. You then switch on 1500w power tool. Instantaneously, the Merlin Combi stops charging, switches to invert mode, and parallels with the incoming generator power. 1000w comes from the generator, 500w from the inverter. When the power tool is switched off, the Merlin Combi reverts back to charge mode and replenishes the battery. All the time your computer worked seamlessly and didn't receive fluctuating power.

Powersine Combi 3000-12-120 Datasheet.pdf Datasheet Powersine Combi 3000-12-120 - 30-2014 - Manual.pdf Manual Warranty policy Policy

Product Name	Merlin Part #	AC Output Power (Continuous)	AC Output Power (10 Mins)	AC Output Power (Surge)	AC Output Voltage / Frequency	AC Output Waveform	AC Output Peak Efficiency	DC Input Voltage (Nominal)	DC Input Operation Range	DC Input Current (No Load, ASB)	Standard Charge Voltage Bulk at 25	Standard Charge Voltage Float at 25	AC Transfer Switch Transfer Time (To Mains)	AC Transfer Switch Transfer Time (To Inverter)	AC Transfer Switch Transfer Relay Rating	Operating Temp. Range	Storage Temp. Range	High/Low Battery Voltage Protection	High Temperature Protection	Overload Protection	Short-Circuit Protection	High Ripple Voltage Protection	Low AC Input Voltage Protection	DC Input Connections	AC Output Connections	Dimensions (MM)	Weight (Kg)	Protection Class	Standards
Product Name	Merlin Part #	AC Output Power (Continuous)	AC Output Power (10 Mins)	AC Output Power (Surge)	AC Output Voltage / Frequency	AC Output Waveform	AC Output Peak Efficiency	DC Input Voltage (Nominal)	DC Input Operation Range	DC Input Current (No Load, ASB)	Standard Charge Voltage Bulk at 25	Standard Charge Voltage Float at 25	AC Transfer Switch Transfer Time (To Mains)	AC Transfer Switch Transfer Time (To Inverter)	AC Transfer Switch Transfer Relay Rating	Operating Temp. Range	Storage Temp. Range	High/Low Battery Voltage Protection	High Temperature Protection	Overload Protection	Short-Circuit Protection	High Ripple Voltage Protection	Low AC Input Voltage Protection	DC Input Connections	AC Output Connections	Dimensions (MM)	Weight (Kg)	Protection Class	Standards
Powersine Combi 1600-12-60 Low Stock	30-2006	1300W	1600W	2500W	230VAC ± 2% / 50Hz	True Sinewave (THD <5%)	92%	12VDC	10-16.5VDC	<10W [2W]	14.3V	12.3V	0ms	<5ms	16ARMS	-20°C to +50°C	-40°C to +80°C	Yes	Yes	Yes	Yes	Yes	Yes	Two Wires, 1.5m Long, 35mm²	Screw Terminals	351x210x114	10.7	IP21	UKCA & CE Marked Meeting EMC Directive 2014/30/EU a LVD 2014/35/EU Complying with EN60335-1, EN60335-2-29 and ROHS 2011/65/EU
Powersine Combi 1800-24-35 Low Stock	30-2008	1400W	1800W	3000W	230VAC ± 2% / 50Hz	True Sinewave (THD <5%)	94%	24VDC	20-33VDC	<12W [2W]	14.3V	12.3V	0ms	<5ms	16ARMS	-20°C to +50°C	-40°C to +80°C	Yes	Yes	Yes	Yes	Yes	Yes	Two Wires, 1.5m Long, 35mm²	Screw Terminals	351x210x114	10.7	IP21	UKCA & CE Marked Meeting EMC Directive 2014/30/EU a LVD 2014/35/EU Complying with EN60335-1, EN60335-2-29 and ROHS 2011/65/EU
Powersine Combi 2000-12-80 On Back Order	30-2010	1800W	2100W	4000W	230VAC ± 2% / 50Hz	True Sinewave (THD <5%)	92%	12VDC	10-16.5VDC	<20W [3.5W]	14.3V	12.3V	0ms	<5ms	30ARMS	-20°C to +50°C	-40°C to +80°C	Yes	Yes	Yes	Yes	Yes	Yes	M10 Bolt Terminals	Screw Terminals	370x431x132	18.5	IP21	UKCA & CE Marked Meeting EMC Directive 2014/30/EU a LVD 2014/35/EU Complying with EN60335-1, EN60335-2-29 and ROHS 2011/65/EU
Powersine Combi 2500-24-50 Low Stock	30-2012	2000W	2500W	5500W	230VAC ± 2% / 50Hz	True Sinewave (THD <5%)	93%	24VDC	20-33VDC	<20W [4W]	28.6V	26.6V	0ms	<5ms	30ARMS	-20°C to +50°C	-40°C to +80°C	Yes	Yes	Yes	Yes	Yes	Yes	M10 Bolt Terminals	Screw Terminals	370x431x132	19	IP21	UKCA & CE Marked Meeting EMC Directive 2014/30/EU a LVD 2014/35/EU Complying with EN60335-1, EN60335-2-29 and ROHS 2011/65/EU
Powersine Combi 3000-12-120 Low Stock	30-2014	1400W	1800W	3000W	230VAC ± 2% / 50Hz	True Sinewave (THD <5%)	92%	12VDC	10-16.5VDC	<20W [3.5W]	14.3V	12.3V	0ms	<5ms	30ARMS	-20°C to +50°C	-40°C to +80°C	Yes	Yes	Yes	Yes	Yes	Yes	M10 Bolt Terminals	Screw Terminals	370x431x132	18.5	IP21	UKCA & CE Marked Meeting EMC Directive 2014/30/EU a LVD 2014/35/EU Complying with EN60335-1, EN60335-2-29 and ROHS 2011/65/EU
Powersine Combi 3500-24-70 Low Stock	30-2016	1400W	1800W	3000W	230VAC ± 2% / 50Hz	True Sinewave (THD <5%)	93%	24VDC	20-33VDC	<20W [4W]	28.6V	26.6V	0ms	<5ms	30ARMS	-20°C to +50°C	-40°C to +80°C	Yes	Yes	Yes	Yes	Yes	Yes	M10 Bolt Terminals	Screw Terminals	370x431x132	19	IP21	UKCA & CE Marked Meeting EMC Directive 2014/30/EU a LVD 2014/35/EU Complying with EN60335-1, EN60335-2-29 and ROHS 2011/65/EU
