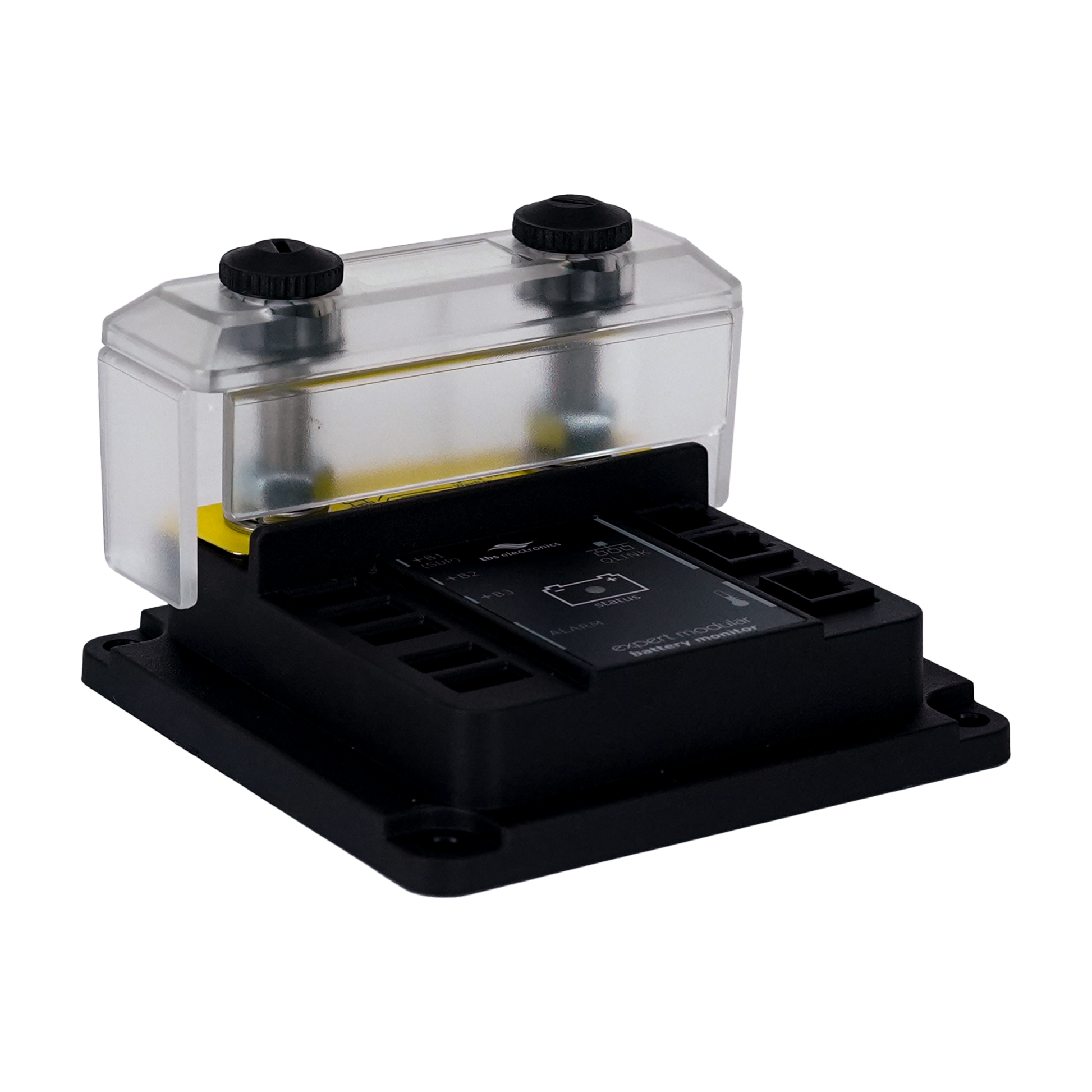

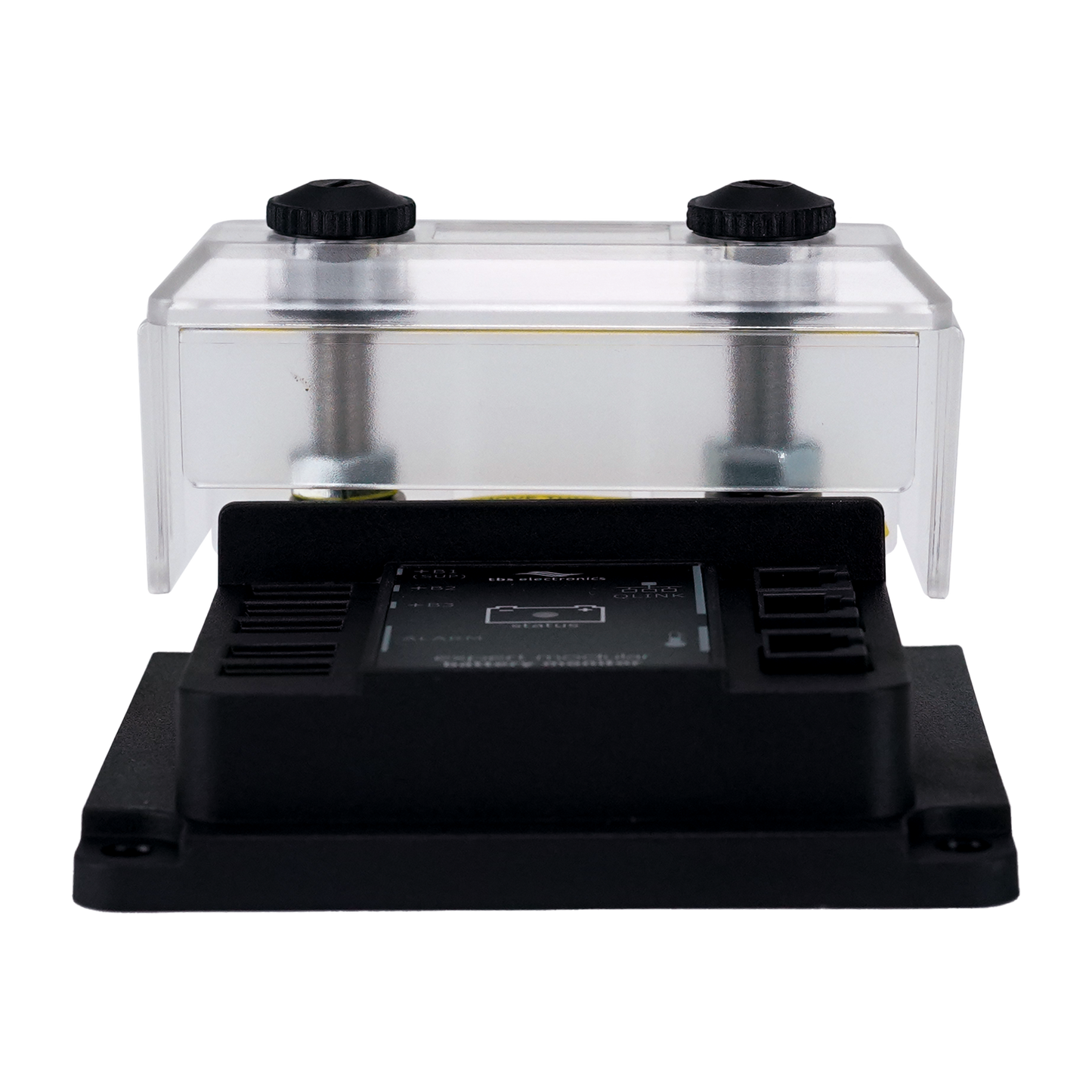

Expert Modular Shunt Only (7-70Vdc)

30-5014

Explore our Expert Modular Shunt (7-70Vdc), a pivotal element in the highly advanced battery monitor Expert Modular. Expert Modular is our latest generation, highly advanced battery monitor. It consists of an intelligent shunt, a remote control, and a display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products.

VIEW OUR FULL RANGE HERE
Regular price £164.87 GBP
Regular price £0.00 GBP Sale price £164.87 GBP
Sale Sold out

PRODUCT DETAILS

Defining the amount of energy available in a battery is a complex task since the battery age, discharge current and temperature influence the actual battery capacity. Merlin's Expert Series range of battery monitors are equipped with high performance measuring circuits, which in combination with complex software algorithms, are used to exactly determine the remaining capacity of your battery.

Merlin's Expert Modular can monitor up to three battery banks as well as measuring DC currents up to 600Amps (500Amp continuous) and voltages up to 70Vdc. This battery monitor is also compatible with lead based and lithium batteries (LiFeP04), so any lead- or lithium based battery bank from 12V up to 48V can be monitored.

Merlin's Expert Modular battery monitor not only shows the true state of charge of your battery system but it also offers a large amount of additional features to optimally supervise your battery system and control external equipment.
