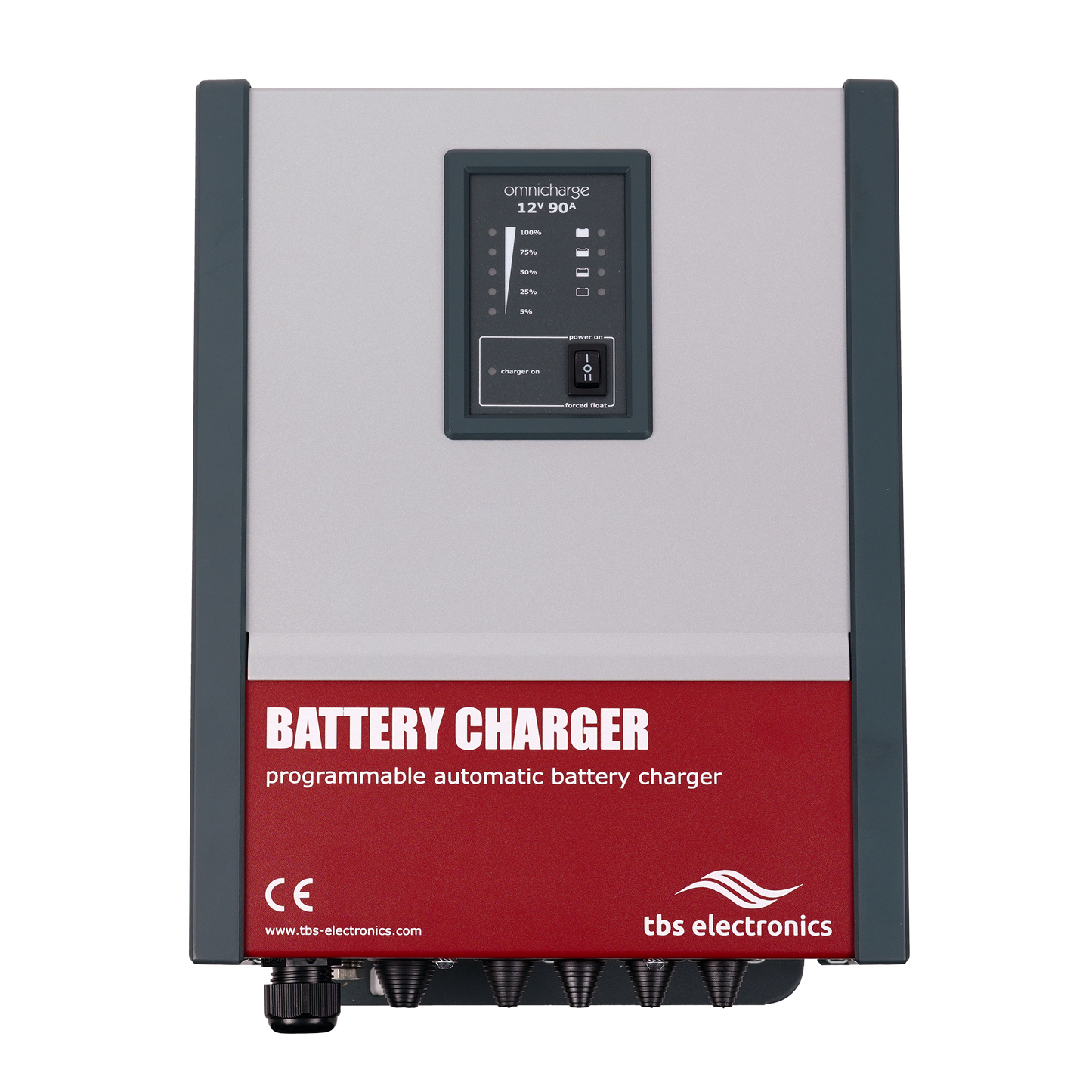

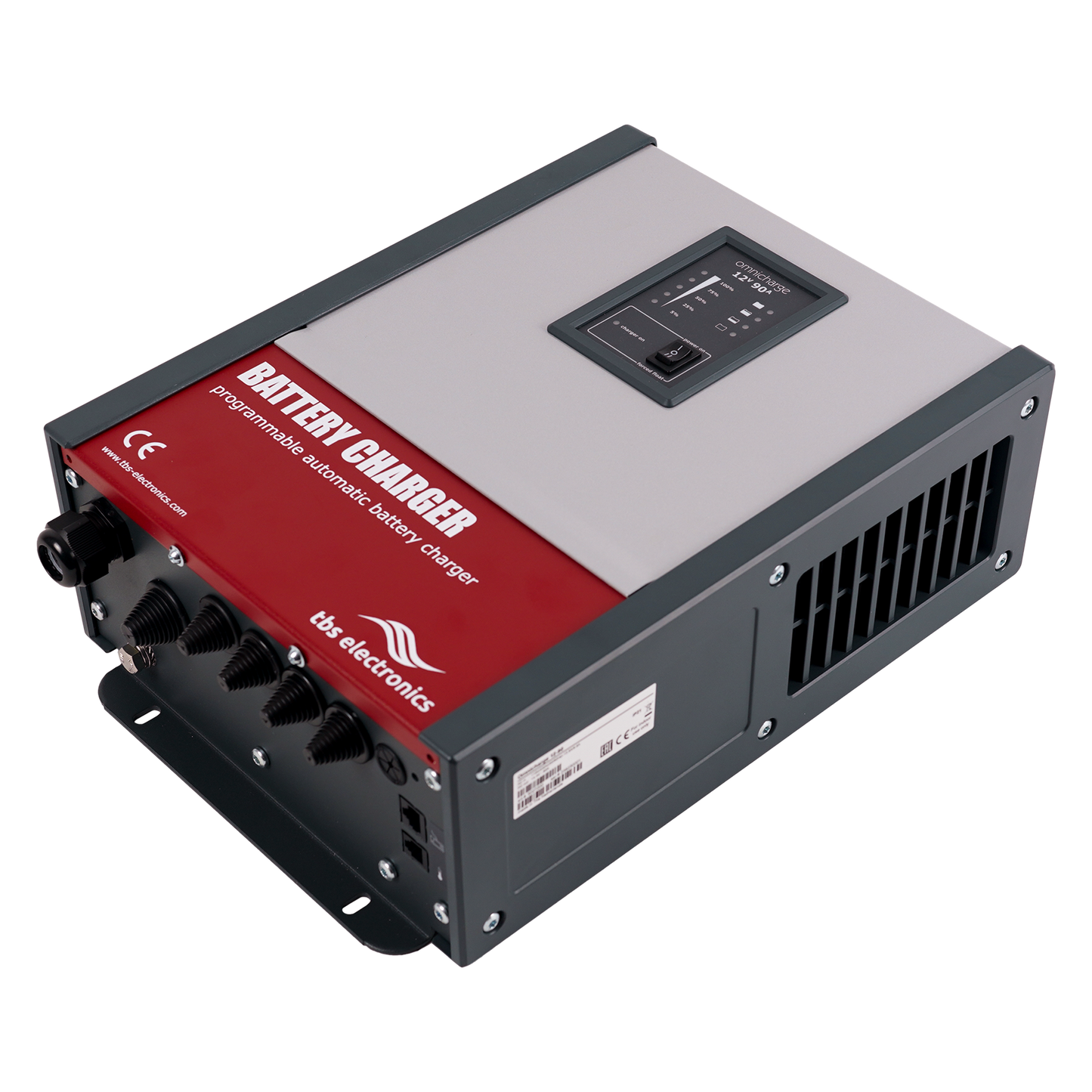

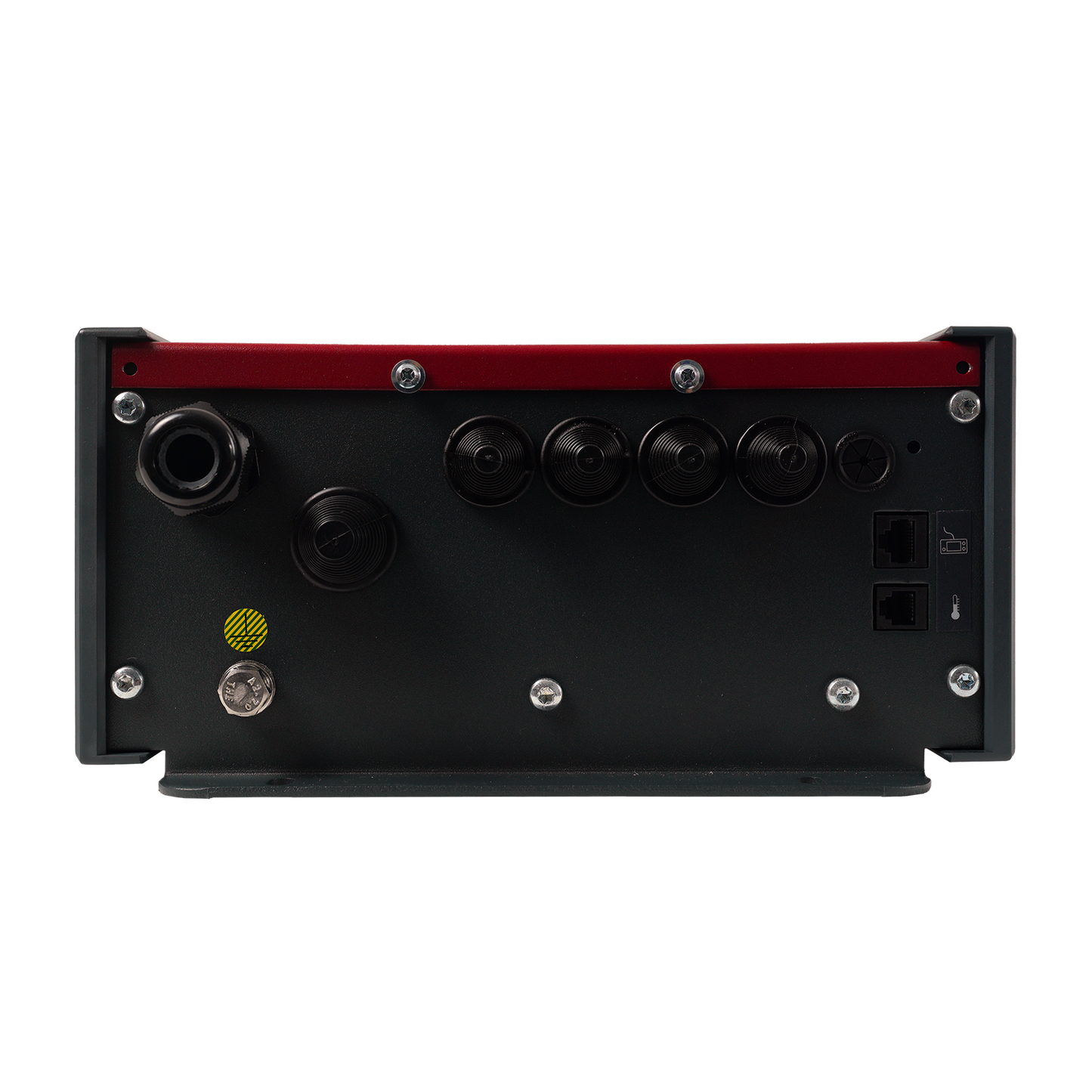

Omnicharge 12-90 3 Output

30-3010

Designed specifically for the most challenging applications, the Omnicharge 12-90 3 Output is robustly designed using the highest quality components for maximum efficiency, ultimate reliability, and best battery charging performance.

VIEW OUR FULL RANGE HERE
£1,086.23 GBP
£1,086.23 GBP
£1,086.23 GBP
Sale Sold out

PRODUCT DETAILS

Merlin Extreme Duty Battery Chargers are the perfect choice where lives and livelihoods depend on batteries being charged and maintained in top condition.

High quality output electronics provide a very 'clean' charging voltage ( DC ripple from low quality electronics shorten battery life)- combined with up to 8 stage smart charging, Merlin Extreme Duty Battery Chargers rapidly replenish battery capacity, keep up with immediate DC loads, and maintain batteries when in stand-by for long periods of time. Universal AC input and Power Factor Correction allow operation anywhere in the World and even from poor quality AC supplies.

Standard programmes are built in for most battery types-custom ones can be created using a PC interface allowing custom programmes for exotic battery chemistries.

TECHNICAL SPECIFICATIONS

MANUALS

Omnicharge_12-90_3_Output_-_30-3010_-_Manual.pdf

TECHNICAL SUPPORT

Red led on panel blinks;

One flash in a row – Battery related. High/low voltage, high/low temperature, high DC ripple.

Two flashes in a row – High/low AC input voltage.

Three flashes in a row – High Temperature Shut down.

Four flashes in a row – Device internal error.



WARRANTY POLICY
