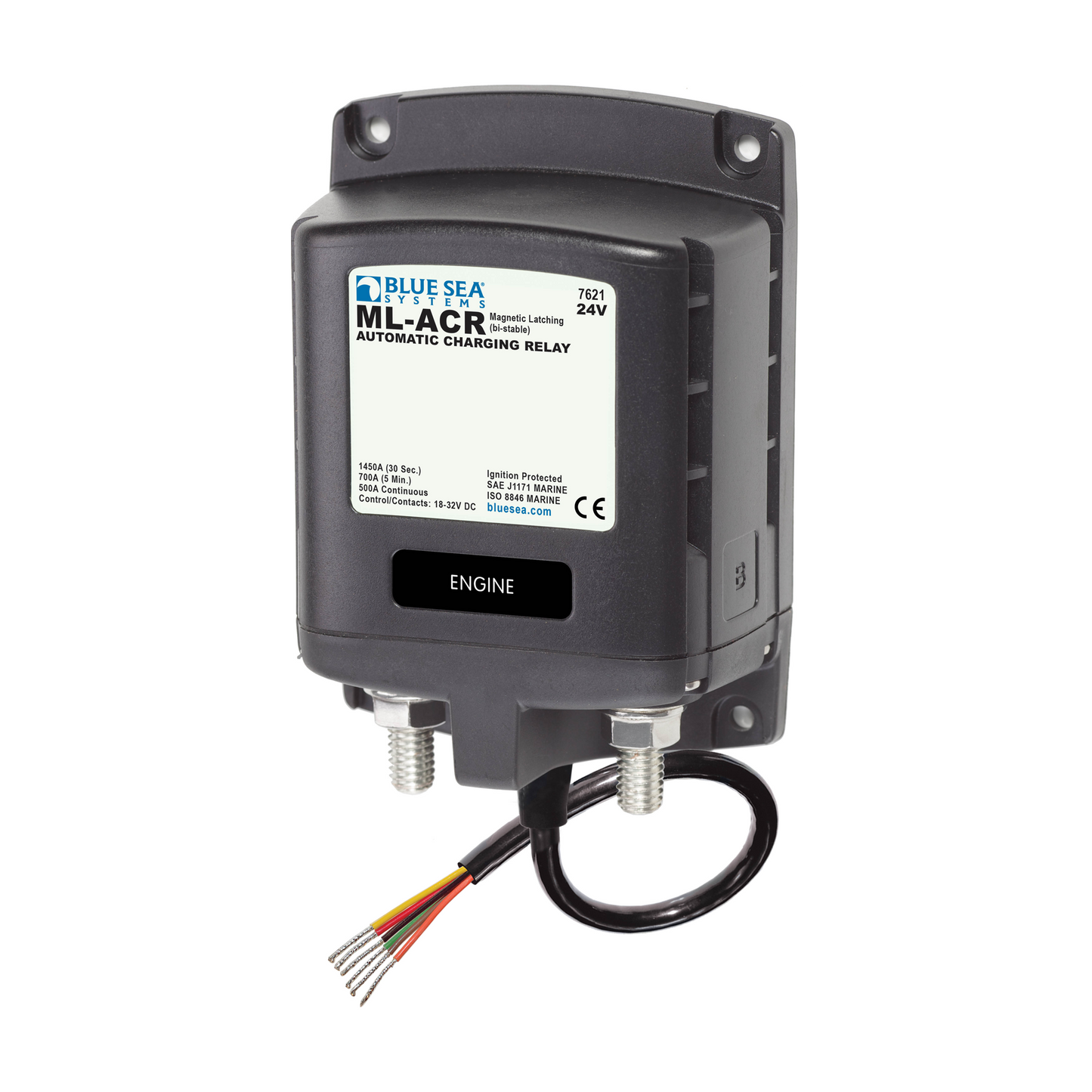

Solenoid ML 500A 24V ACR

The Solenoid ML 500A 24V ACR 500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine. It also includes: � ML-Series Remote Control Contura Switch PN 2146 � Automatically manages the charging of two large battery banks � Allows paralleling of battery banks for emergency starting � 500 Ampere continuous rating to support high-output alternators � Magnetic Latch (ML) - ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state � Dual sensing - senses charge on both battery banks � Start Isolation (SI) - can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics � Engine Isolation (EI) -can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output � Senses charging on two battery banks � LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation � 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance � 7/8" (22mm) stud length accepts multiple cable terminals � Silver alloy contacts provide high reliability for switching live loads � Label recesses for circuit identification
