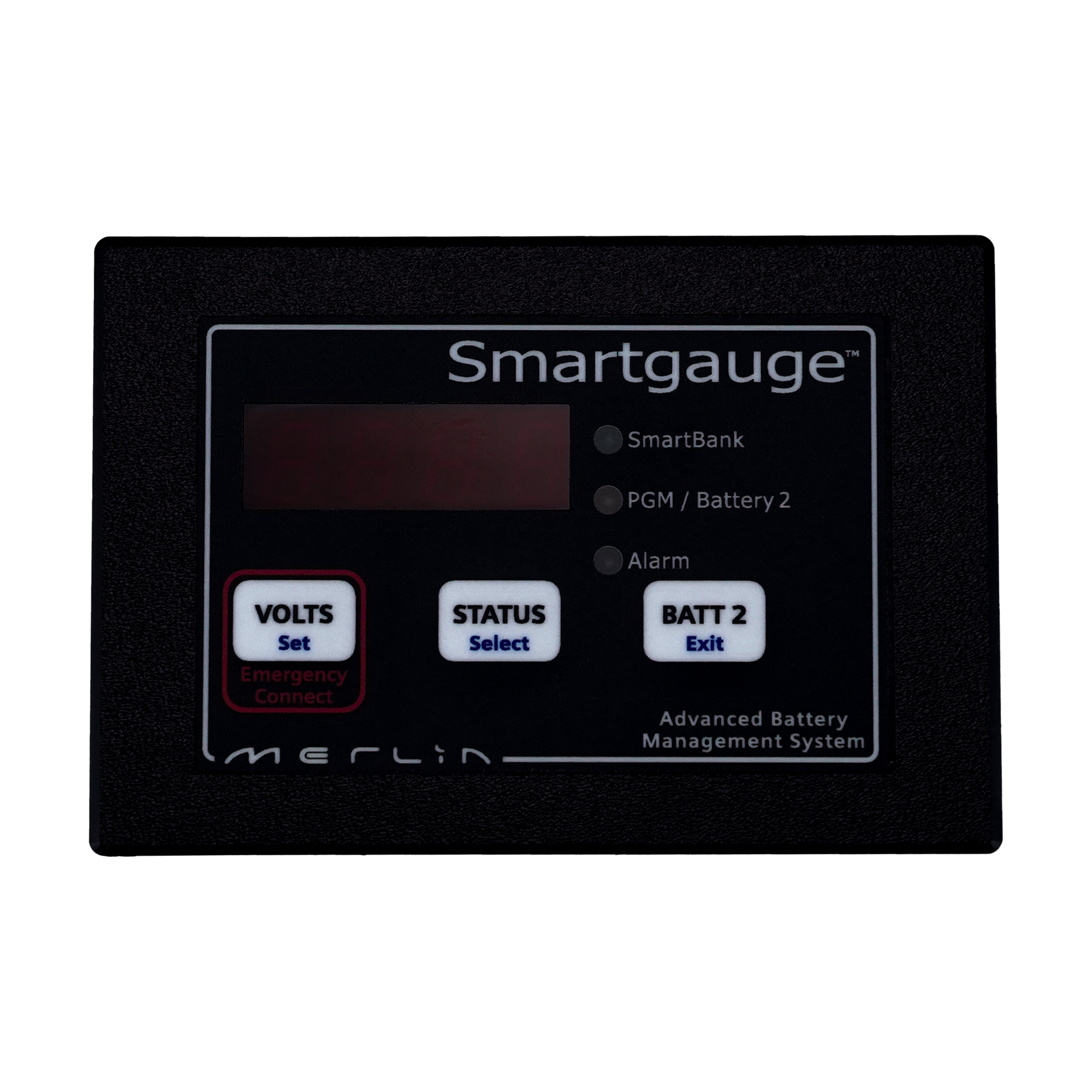

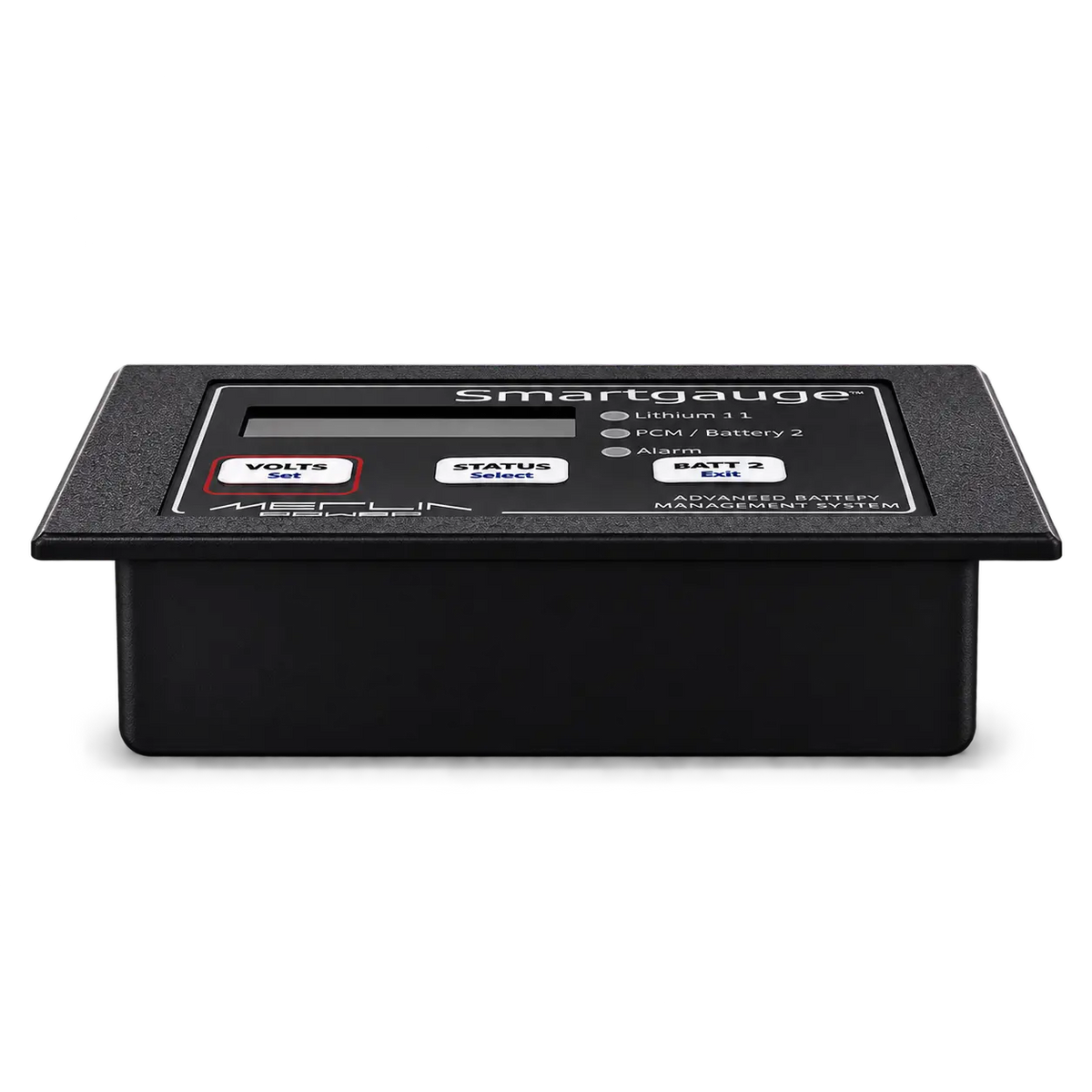

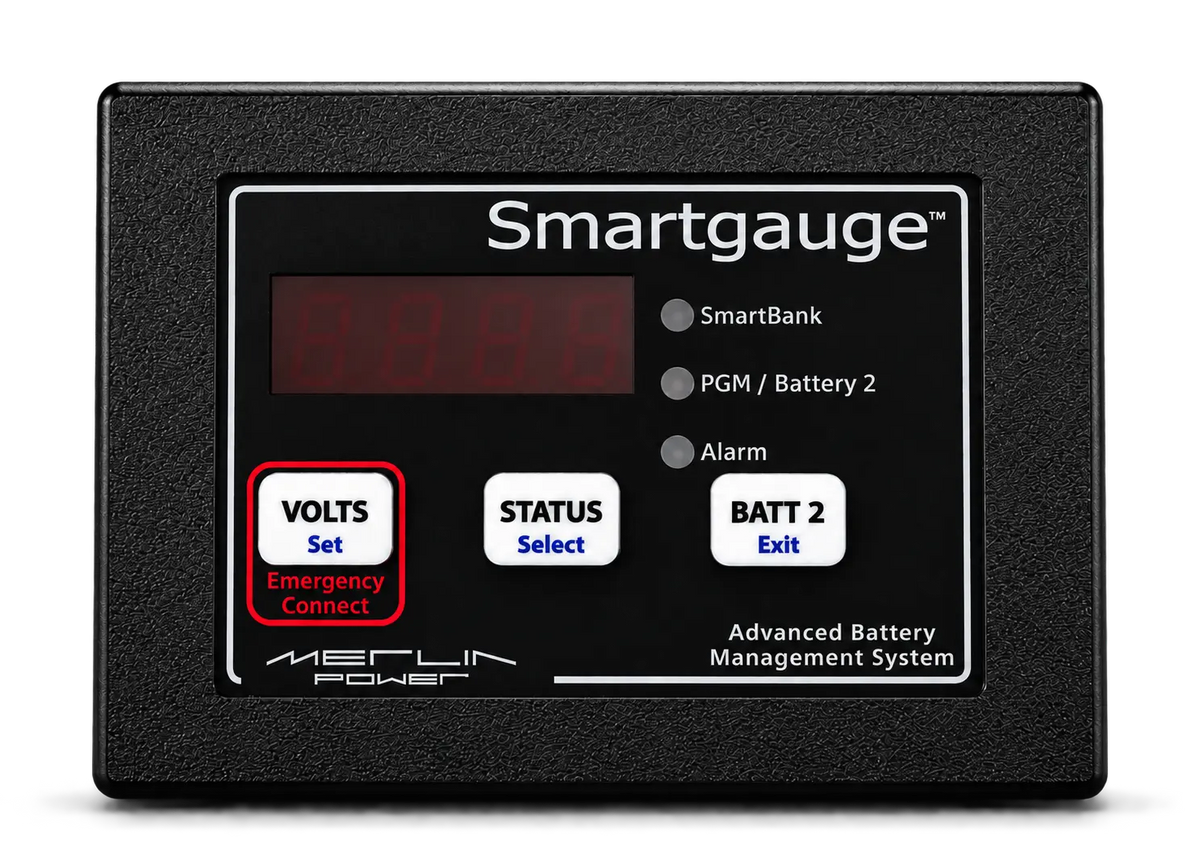

SmartGauge 12/24V Battery Monitor

SmartGauge is widely renowned to be the world's most accurate battery monitoring technology. It is a 12V/24V battery monitor that shows your auxiliary battery’s voltage and state of charge, plus the voltage of a secondary battery e.g., an engine start battery. It can also provide high/low battery alarms, state of charge alarms, and an output for external alarms or relays. Unlike conventional amp-hour monitors, it is designed to avoid issues such as lost synchronisation, inaccurate readings, frequent resetting, and complex installation. When paired with SmartBank Advanced, it also works as a remote display and control panel for split charging.

Think of it like the fuel gauge for your car. A battery monitor shows you the state of charge of your battery, so you can make informed decisions about whether batteries need charging, so when to start an engine or generator, and whether there is enough power for a particular load.

It can also help you manage charging and discharging more carefully, which can extend battery life and reduce replacement and reduce through-life replacement and maintenance costs over time.

With accurate state-of-charge information, systems can also automate actions such as load shedding or generator start/stop.

SmartGauge is best for 12V or 24V auxiliary battery systems where you need a clear, reliable view of battery state of charge - such as in vehicles, boats, motorhomes, off-grid systems and generators. It helps you decide when to charge, start an engine or generator, or whether there is enough stored power for a load.

It is particularly useful where conventional amp-hour monitors are inconvenient or inaccurate, since SmartGauge learns your battery profile over a few charge/discharge cycles and adjusts as batteries age.

Use it with SmartBank Advanced if you also want a remote display and control interface for split charging; it can show split-charge status and configure the system when connected.

Traditional amp-hour counter battery monitors add up the current going in and out of the battery, so it will become inaccurate overtime and regularly need resyncing. SmartGauge uses a model of the battery and recalibrates itself during every charge and discharge cycle, so it never drifts out of sync and always provides you with the most accurate data possible.

No. You should never need to reset your SmartGauge. The only setting you choose is the battery type. SmartGauge automatically adjusts for battery ageing, lost capacity and Peukert’s effect.

Even when you change your battery, there is no need to reset your SmartGauge, unless your are changing your battery chemistry or type.

Yes. Connect it to a SmartBank Advanced with the RJ11 lead (provided with the SmartBank Advanced). SmartGauge sets up the split charging for your battery type. It then shows split charge status, reports faults and adds an emergency-parallel function for starting the engine from the auxiliary bank.

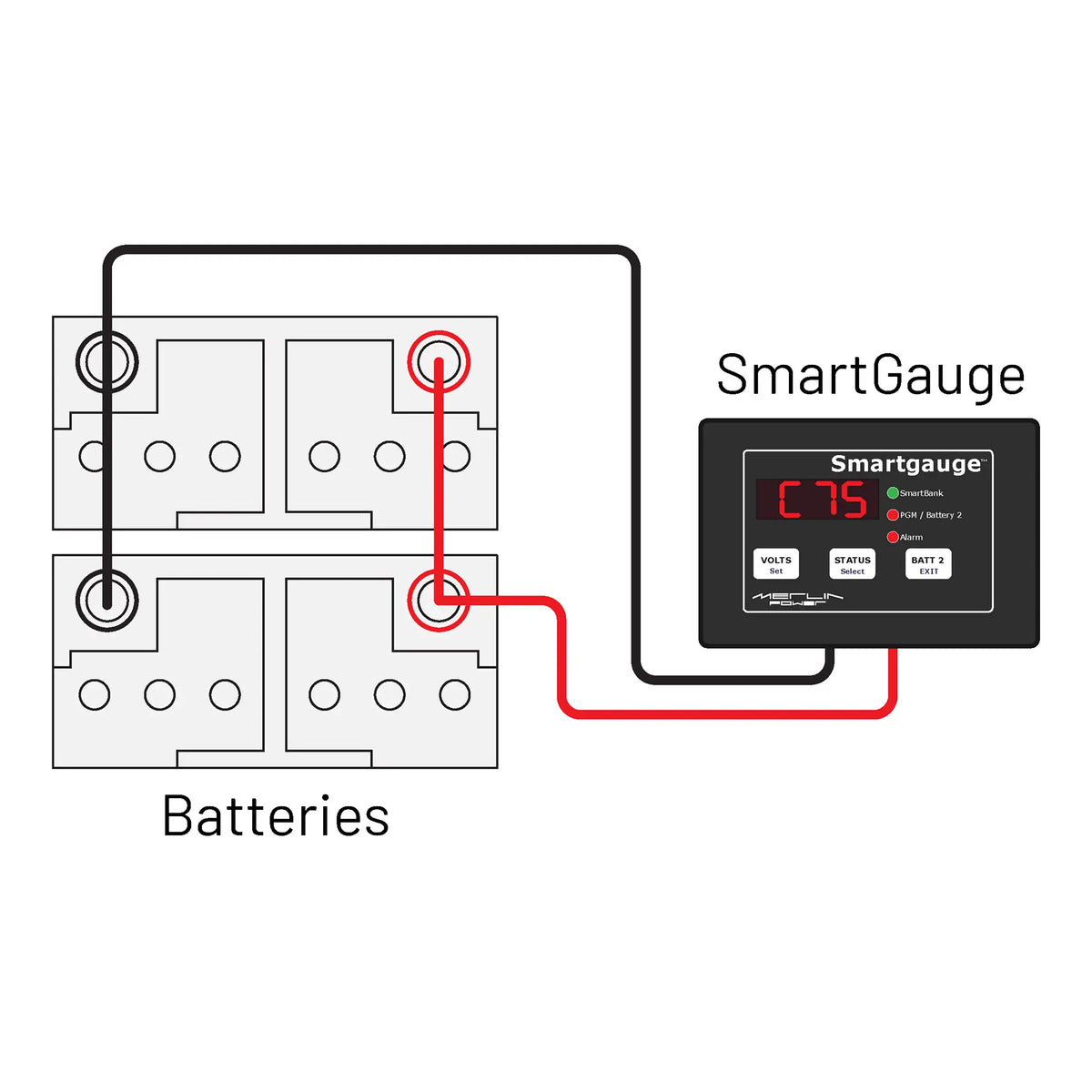

SmartGauge can monitor up to two battery banks:

• Battery 1: the main auxiliary battery bank - voltage and state of charge. This single bank can consist of multiple batteries up to a capacity of 2000 Ah.
• Battery 2: a secondary auxiliary bank or engine-start battery - voltage monitoring.

Both banks must be the same nominal voltage, either both 12V or both 24V, and share a common negative connection.

Because of SmartGauge’s world-leading accuracy, the displayed state-of-charge information always allows you to make reliable decisions on load shedding and charging to prevent over discharging or over charging your battery, which could lead to battery damage.
