07-1341

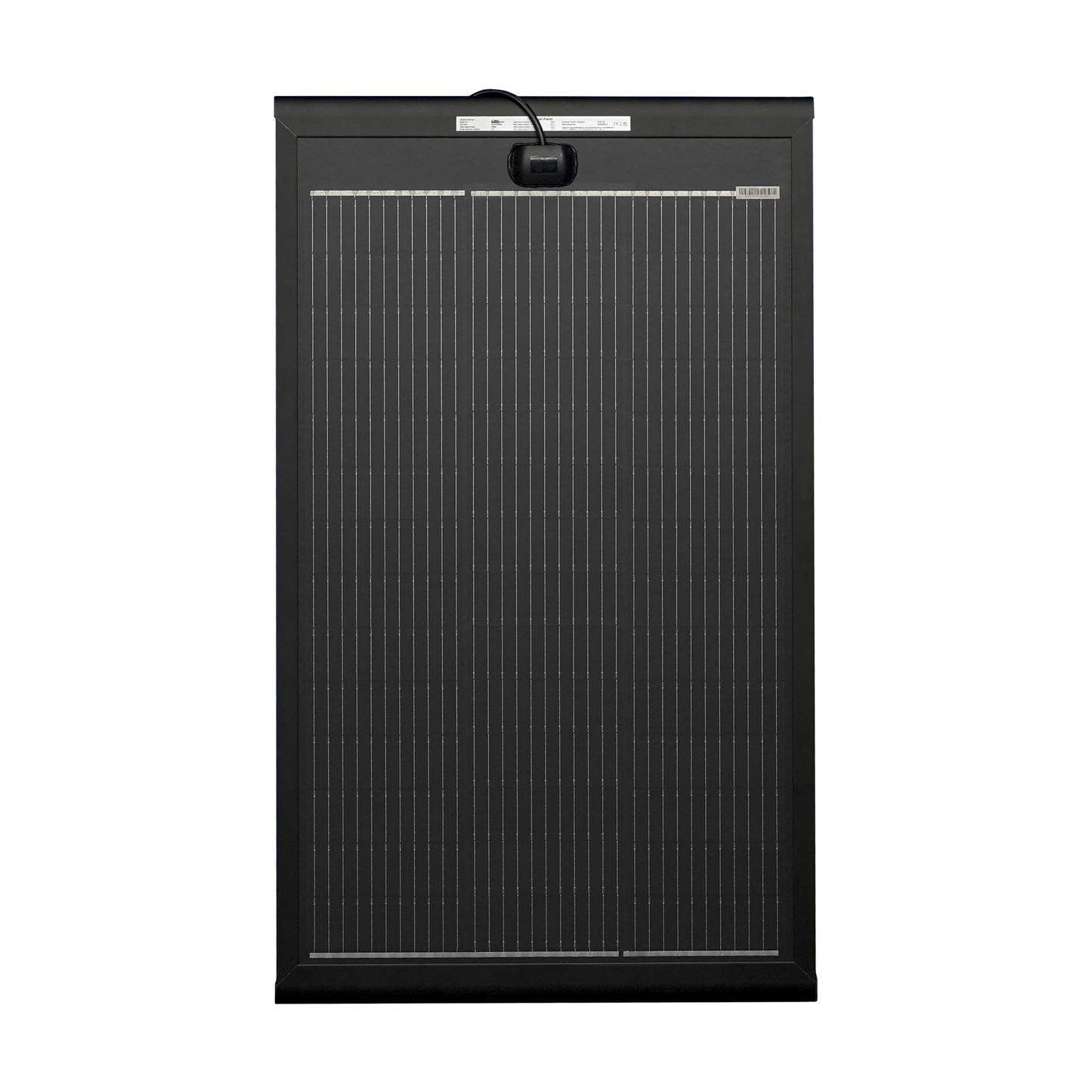

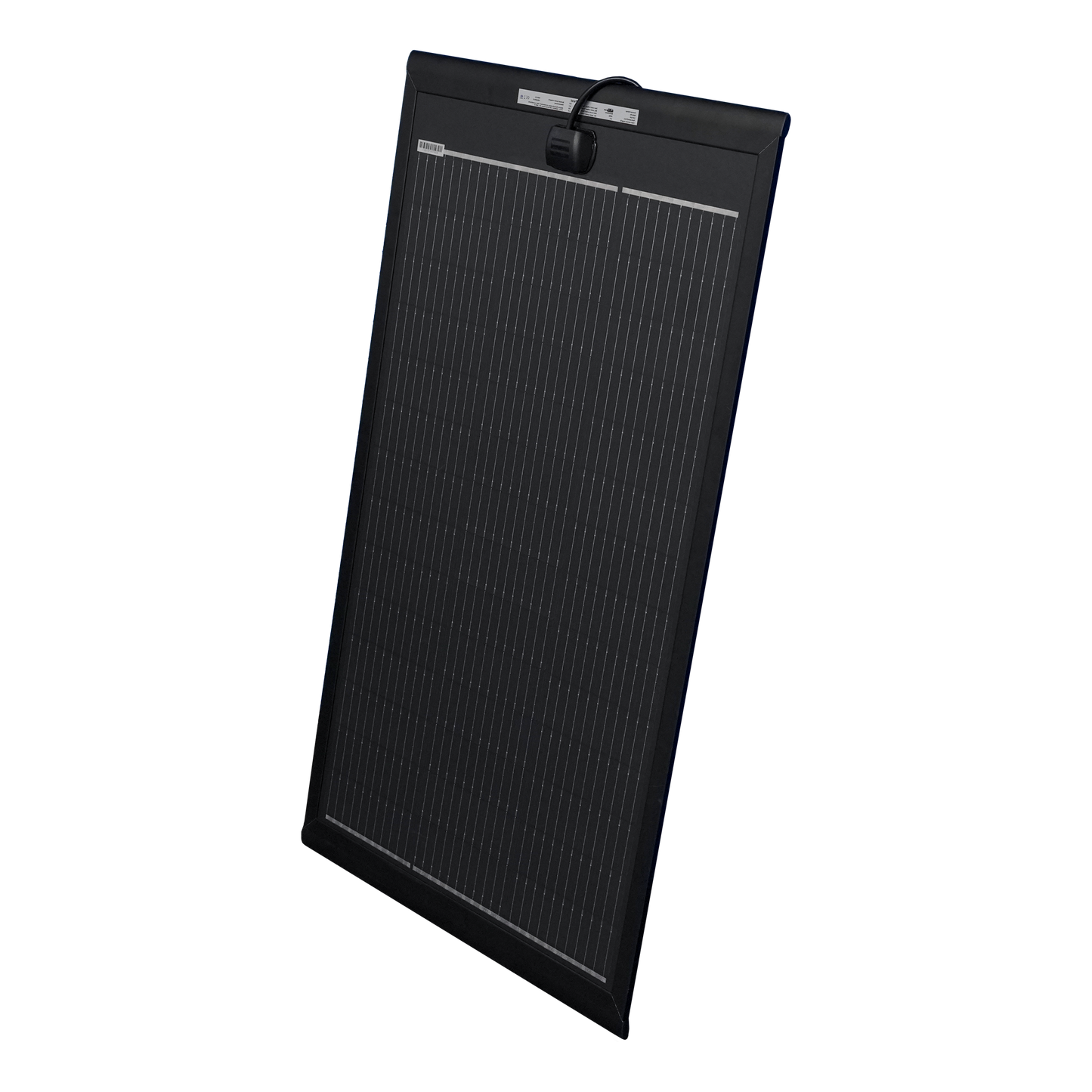

100 Watt SlimEdge MHD Rigid Panel Kit (inc 15A MPPT)

Marine

Vehicles

Fleet Vehicles

Lighter, thinner, and easier to install, our latest 100W SlimEdge MHD Rigid Solar Panel (inc 15A MPPT) is designed for maximum efficiency and convenience.

Built-in diode protects against battery discharge.

Half the weight of standard rigid panels.

Thin profile - just 12mm thick.

Easy install with no brackets required.

5-Year Warranty

Buy with confidence knowing your product is covered by our market-leading 5-year warranty policy.

LOW STOCK - delivery in 1-3 business days

Quantity

£395.00 GBP

~~£395.00 GBP~~

£395.00 GBP

Inc. VAT: £474.00

Buying as a business?

Benefit from custom pricing and direct access to a dedicated account manager.

Request a quote Apply for a trade account

Merlin’s SlimEdge Rigid Solar Panels offer the same trusted durability and reliability as our existing range while introducing new advancements that enhance usability.

The thinner, lightweight construction and integral mounting features makes handling and installation effortless. Available in 100W, 120W, 150W and 200W variants, these panels provide a high-performance solution for any application, including commercial vehicles, caravans, motorhomes, boats and off-grid systems.

100 Watt SlimEdge MHD Rigid Panel Kit (inc 15A MPPT) Datasheet.pdf Datasheet Warranty policy Policy

Product Name	Merlin Part #	Power	Dimensions (LxWxH) (MM)	Weight (Kg)	Watts Per Day (W)	Amp Hours Per Day (A)	Charge Controller	VMP (VDC)	IMP (A)	VOC (C)	ISC (A)
Product Name	Merlin Part #	Power	Dimensions (LxWxH) (MM)	Weight (Kg)	Watts Per Day (W)	Amp Hours Per Day (A)	Charge Controller	VMP (VDC)	IMP (A)	VOC (C)	ISC (A)
100 Watt SlimEdge MHD Rigid Panel On Back Order	07-1340	100W	1080x620x12	3.7	600	24.60	10A	24.4	4.10	28.5	4.30
100 Watt SlimEdge MHD Rigid Panel Kit (inc 15A MPPT) Low Stock	07-1341	100W	1080x620x12	3.7	600	24.60	10A	24.4	4.10	28.5	4.30
120 Watt SlimEdge MHD Rigid Panel On Back Order	07-1342	120W	1230x620x12	4.2	720	39.50	10A	19.1	6.29	22.3	6.60
120 Watt SlimEdge MHD Rigid Panel Kit (inc 15A MPPT) Low Stock	07-1343	120W	1230x620x12	4.2	720	39.50	10A	19.1	6.29	22.3	6.60
150 Watt SlimEdge MHD Rigid Panel On Back Order	07-1344	150W	1135x805x12	5.0	900	38.80	15A	23.2	6.47	27.1	6.79
150 Watt SlimEdge MHD Rigid Panel Kit (inc 15A MPPT) Low Stock	07-1345	150W	1135x805x12	5.0	900	38.80	15A	23.2	6.47	27.1	6.79
200 Watt SlimEdge MHD Rigid Panel On Back Order	07-1346	200W	1513x805x12	6.0	1200	39.96	20A	28.5	6.16	32.5	6.46
200 Watt SlimEdge MHD Rigid Panel Kit (inc 15A MPPT) On Back Order	07-1347	200W	1513x805x12	6.0	1200	39.96	20A	28.5	6.16	32.5	6.46
